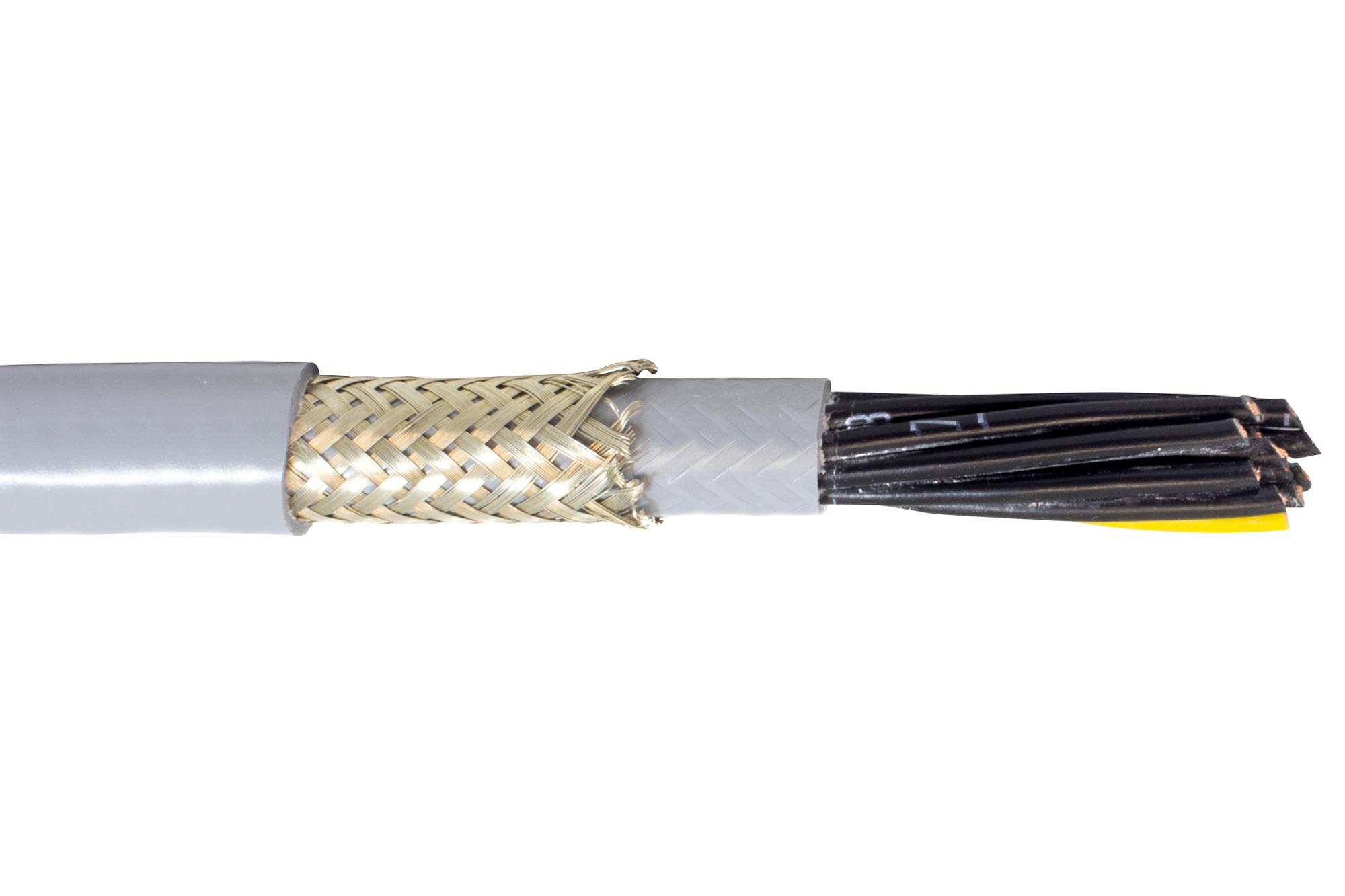

ALPHA WIRE 65267CYSL005 Control Cable
This is a high-quality flexible control cable suitable for industrial environments, rated for 90°C and 600V. It features stranded bare copper conductors with PVC insulation and jacket, copper braid shielding for EMI protection, and robust construction compliant with UL, CSA, and CE standards. The cable is oil resistant, flexible at low temperatures, and designed for reliable electrical performance with low capacitance and inductance. Available in various lengths, it is ideal for control systems, instrumentation, and automation applications requiring durability and safety.
ALPHA WIRE 65267CYSL005 Control Cable Specifications:
- Conductor: 26 AWG bare copper
- Insulation: PVC, wall thickness 0.022"
- Jacket: PVC, wall thickness 0.030", color SLATE
- Shield: Copper braid, 85% coverage
- Cable wall: 0.035" PVC
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Voltage Rating: 600V
- Capacitance: 24.2 pF/ft @1 kHz
- Ground Capacitance: 44 pF/ft @1 kHz
- Inductance: 0.26 μH/ft
- Conductor DCR: 38 Ω/1000ft @20°C
- Shield DCR: 3.7 Ω/1000ft @20°C
- Bend Radius: 5X cable diameter
- Pull Tension: Max 21.9 lbs
- Rated for UL, CSA, CE
- Environmental Compliance: RoHS 2 & 3, REACH
- Physical Length Varieties: 1000 ft, 500 ft, 100 ft
Buy the Alpha Wire 65267CY – Reliable Control Cable for Industrial Applications
Purchase Alpha Wire 65267CY control cable online today for your industrial automation needs. Designed with copper conductors, PVC insulation and jacket, shielded for EMI protection, rated for 90°C and 600V, meeting UL, CSA, and CE standards. Ideal for control systems, instrumentation, and automation, providing exceptional durability, flexibility, and safety. With various length options, this cable ensures reliable electrical performance in harsh environments. Order now to ensure your machinery's optimal operation with high-quality, compliant wiring solutions.
Get Alpha Wire 65267CY today—built for precision, flexibility, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65267CYSL005?
You can click on the BUY or RFQ button to purchase 65267CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65267CYSL005?
You can download the 65267CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65267CYSL005?
ALPHA WIRE
