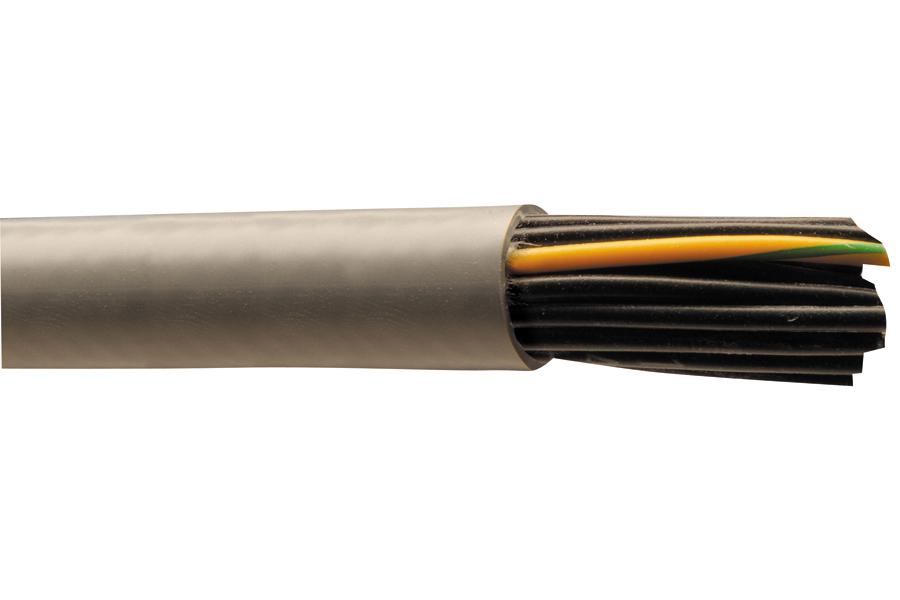

ALPHA WIRE 65405SL005 Flexible Control Cable
The 65405 SL005 is a five-core unshielded cable with a bare copper conductor and lubricated PVC insulation, designed for durability and flexibility. It complies with AlphaWire's Xtra-Guard standards, suitable for light to moderate flexibility, and features an oil-resistant slate PVC jacket for high-performance in demanding environments. This robust cable supports high-flex, torsion and continuous-flex applications like motion control, with liquid-tight installation ratings of IP67 and NEMA 6. It has a maximum pull tension of 161 lbs, an inductance of 0.17 µH/ft, and a conductor resistance of 2.6 Ω/1000 ft at 20°C, ensuring reliable electrical performance.
ALPHA WIRE 65405SL005 Flexible Control Cable Specifications:
- Number of conductors: 5
- Conductor Material: Bare copper
- Insulation Material: PVC, lubricated, with 0.022-inch wall thickness
- Jacket Material: PVC, oil resistant, slate color, 0.055-inch wall thickness
- Jacket Rating: IP67, NEMA 6 for liquid-tight sealing
- Maximum Pull Tension: 161 lbs
- Inductance: 0.17 µH/ft
- DC Resistance: 2.6 Ω/1000 ft at 20°C
- Voltage Rating: 600 V
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Bend Radius: 5 times the cable diameter
- Capacitance: 35 pF/ft @1 kHz
- Certifications: UL, CSA, CE, RoHS, REACH
- Available lengths: 100 ft, 500 ft, 1000 ft
Buy the Buy AlphaWire Cable Part Number 65405SL005 Online
Purchase the AlphaWire control cable online today. Designed for high durability in motion control, this five-core unshielded cable features oil-resistant PVC insulation and a liquid-tight jacket to ensure performance in demanding environments. With UL, CSA, CE, and RoHS certifications, it supports high-flex, torsion, and continuous-flex applications. Available in various lengths, it offers reliable electrical performance with low inductance and resistance, supporting safe operation in industrial automation, machinery, and control systems. Order now for quick, secure delivery.
Get AlphaWire 65405SL005 today—built for precision, durability, and high-flex motion control applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65405SL005?
You can click on the BUY or RFQ button to purchase 65405SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65405SL005?
You can download the 65405SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65405SL005?
ALPHA WIRE
