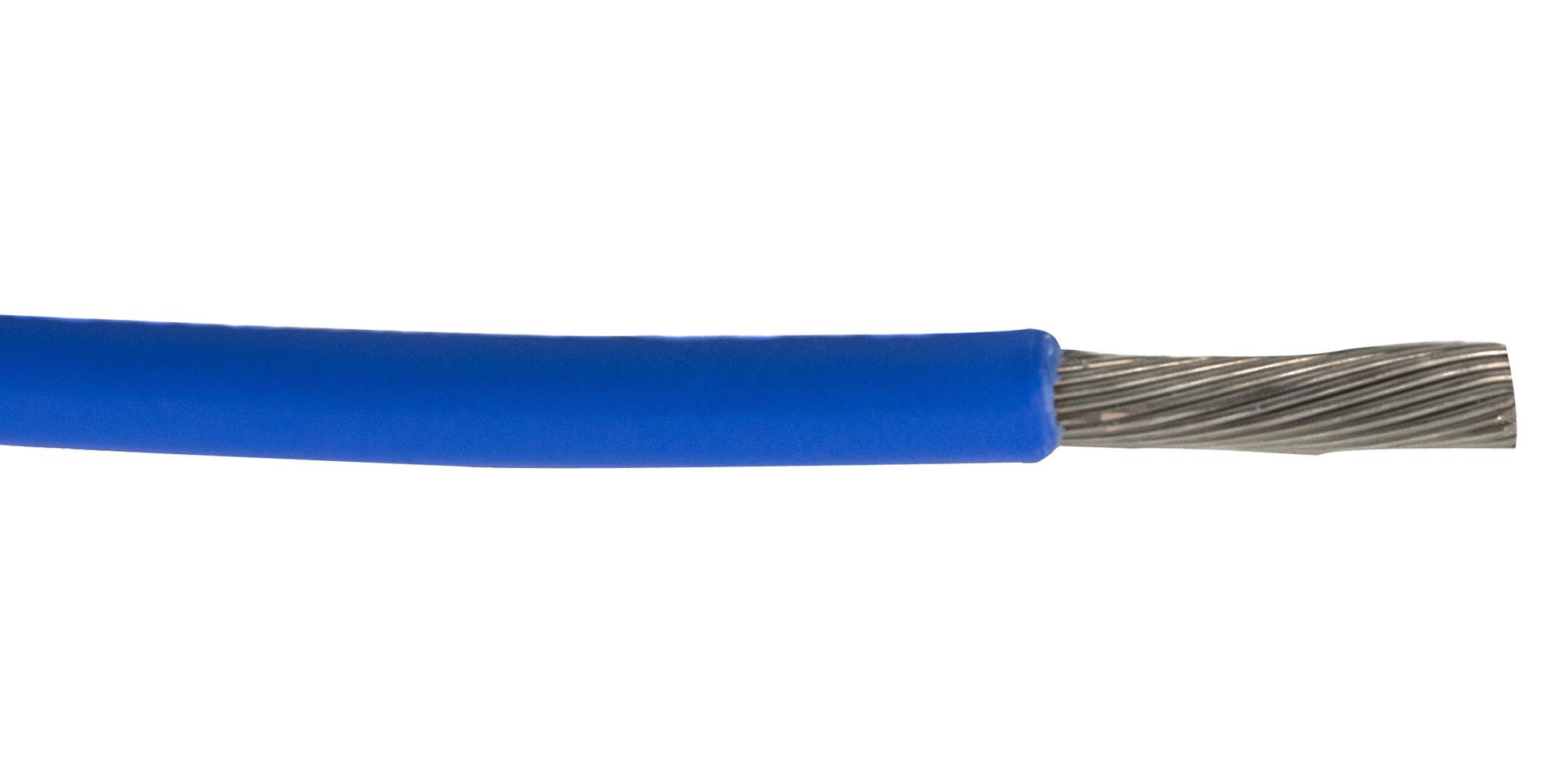

ALPHA WIRE 67025BL321 Electrical Cable
The product is a multi-conductor flexible cable designed for low-voltage electrical wiring applications. Constructed with tinned copper conductors and modified polyphenylene insulation, it meets UL and CSA safety standards, including VW-1 flame rating. Suitable for industrial and electronic device wiring, it features a voltage rating of 600V, operates within a temperature range of -40°C to 105°C, and has a minimum bend radius of 10 times the cable diameter. The cable is available in various colors and spool lengths, compliant with RoHS and REACH regulations for environmental safety.
ALPHA WIRE 67025BL321 Electrical Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 0.25 mm (32/0.10)
- Insulation Wall Thickness: 0.260 mm
- Voltage Rating: 600 V
- Temperature Range: -40°C to 105°C
- Flame Rating: VW-1
- Bend Radius: 10X Cable Diameter
- Operating Inductance: 0.16 μH
- Conductor DCR: 80 A/Km @20°C
- Color Options: BLACK, RED, WHITE, BLUE, GREEN, BROWN, YELLOW, ORANGE, VIOLET, GREEN/YELLOW
- Spool Lengths: 50 M, 100 M, 500 M
- Approvals: UL AWM 11028, CSA International, IEC 60332-2, CE
- Materials Compliance: RoHS, REACH
- Packaged as continuous lengths in spools with dimensions: flange x traverse x barrel, varies slightly by length
Buy the AlphaWire Series ECOWIRE 0.25MM2: 67025BL321
Order AlphaWire electrical cable 67025BL321 online today for high-quality, flexible wiring suitable for industrial and electronic applications. This cable features tinned copper conductors with a 600V rating and a temperature range from -40°C to 105°C, ensuring durability and safety. Available in multiple colors and lengths, it complies with RoHS and REACH standards. Ideal for wiring installations requiring flame-retardant and environmentally compliant materials, this cable provides excellent mechanical flexibility, with a minimum bend radius of 10 times the cable diameter. Purchase now for reliable, long-lasting electrical connections.
Get AlphaWire 67025BL321 today—built for safety, flexibility, and reliable electrical performance in industrial and electronic wiring projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67025BL321?
You can click on the BUY or RFQ button to purchase 67025BL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67025BL321?
You can download the 67025BL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67025BL321?
ALPHA WIRE
