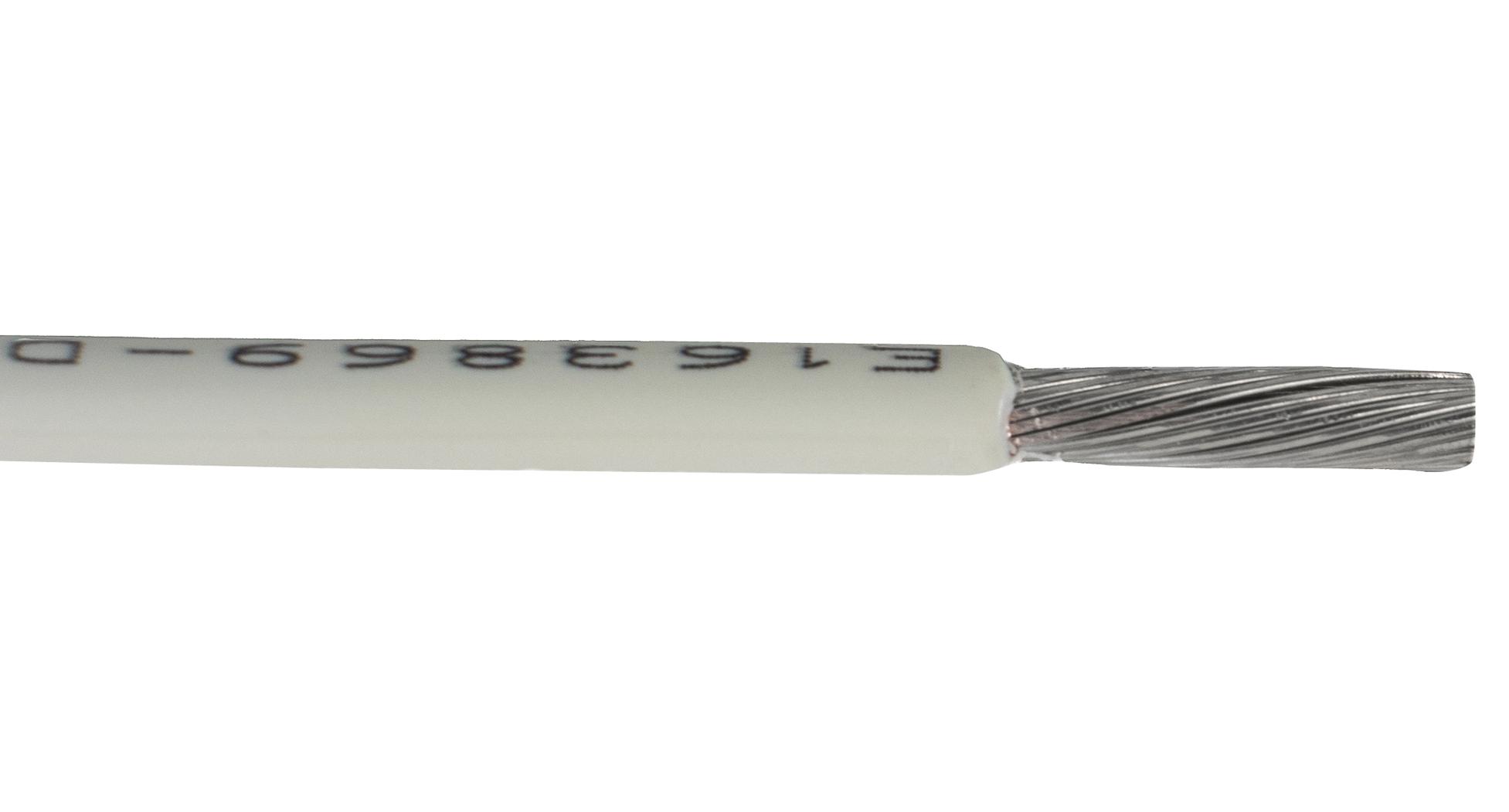

ALPHA WIRE 67025WH321 Flexible Copper Wire
The product is a flexible, tinned copper wire with modified polyphenylene insulation, rated for 105°C and 600V, suitable for wiring applications in electronic and electrical systems. It complies with UL, CSA, CE, and RoHS standards, featuring multiple color options including black, red, white, blue, and green/yellow, among others. Its construction includes specific conductor and insulation diameters, with a bend radius of 10 times the cable diameter, making it ideal for environments requiring flexibility and durability. Suitable for industrial wiring, control panels, and electronics assemblies.
ALPHA WIRE 67025WH321 Flexible Copper Wire Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 0.25 mm (32/0.10)
- Insulation Material: Modified Polyphenylene
- Insulation Wall Thickness: 0.260 mm
- Temperature Rating: 105°C
- Voltage Rating: 600 V
- Flame Rating: VW-1
- Standards: UL AWM 11028, CSA AWM, IEC 60332-2, CE Low Voltage Directive 2014/35/EU
- Bend Radius: 10X Cable Diameter
- Electrical Resistance: Conductor DCR 80 A/Km @20°C
- Operating Temperature Range: -40 to 105°C
- Packaging: 500 M spool, 100 M, 50 M lengths available
- Color Options: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
Buy the Buy AlphaWire Part Number 67025WH321 Online
Purchase AlphaWire Flexible Copper Wire Part Number 67025WH321 online today for your electrical and control system needs. This high-quality copper wire features modified polyphenylene insulation rated for 105°C and 600V, ensuring optimal performance in demanding environments. Its flexible design and multiple color options make it ideal for wiring harnesses, control panels, and electronic assemblies. With UL, CSA, CE, and RoHS certifications, this wire provides safety and compliance. Enjoy fast shipping and excellent customer service when you order this reliable wiring solution online today.
Order your AlphaWire Part Number 67025WH321 today and ensure reliable, flexible wiring for your electronic and electrical projects with premium insulation and performance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67025WH321?
You can click on the BUY or RFQ button to purchase 67025WH321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67025WH321?
You can download the 67025WH321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67025WH321?
ALPHA WIRE
