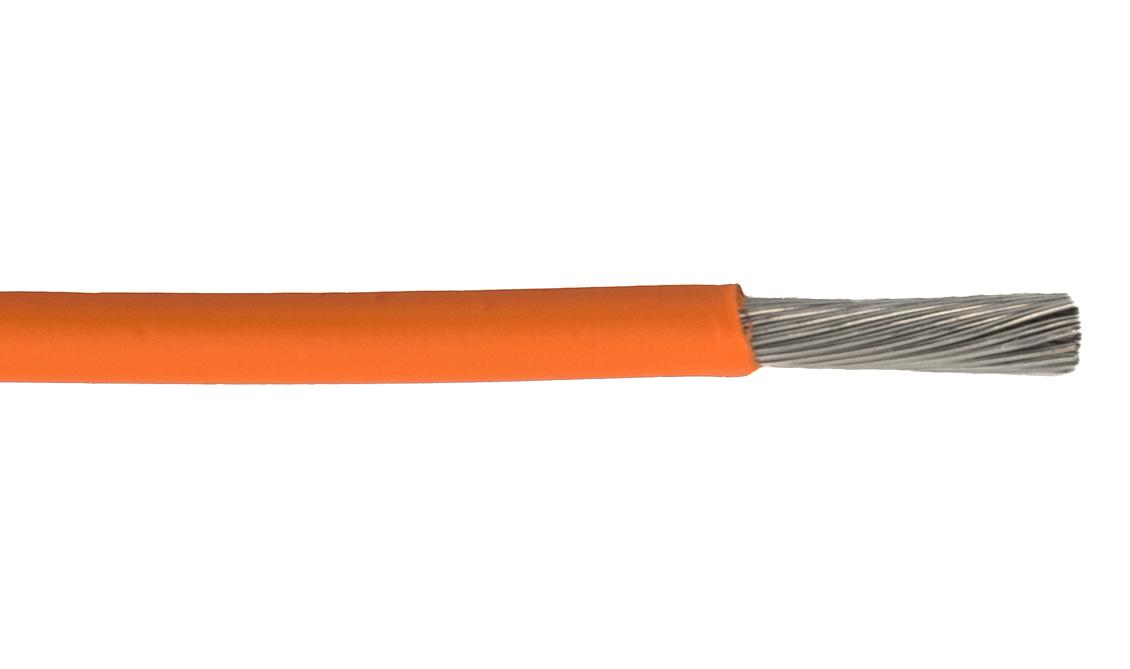

ALPHA WIRE 67050OR321 Insulated Copper Wire
This product is a tinned copper wire with a 0.50 mm conductor diameter and a modified polyphenylene insulation wall, rated for 105°C and 600V. It conforms to UL and CSA standards, is halogen-free, and complies with RoHS2 and REACH regulations. The wire features multiple color options, including black, red, white, blue, green, brown, yellow, orange, and violet, suitable for various electrical and electronic applications. Its physical properties include a bend radius of 10 times the cable diameter and a maximum temperature handling from -40°C to +105°C, making it ideal for insulation and wiring in industrial environments.
ALPHA WIRE 67050OR321 Insulated Copper Wire Specifications:
- Conductor Diameter: 0.50 mm (28/0.16), Tinned Copper
- Insulation Wall: 0.250 mm Modified Polyphenylene
- Temperature Rating: -40°C to +105°C
- Voltage Rating: 600 V
- Standards: UL JAWMSTYLE 11028 105°C / 600V VW-1, CSA C(RU) AWM I/A/B FT1 105°C / 600V
- Flame Behavior: IEC 60332-2
- Environmental Compliance: RoHS2, REACH
- Physical Properties: Bend Radius 10x Cable Diameter
- Size Options: 6.5 x 4 x 2.5 mm (spool dimensions vary), 3.5 x 3 x 1.125 mm, 2.75 x 2 x 1.125 mm
- Color Options: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet
- Insulation Material: Modified Polyphenylene
- Operating Environment: Indoor, industrial wiring
Buy the AlphaWire 67050 U– Reliable Insulated Copper Wire for Industrial Applications
Enhance your electrical installations with AlphaWire insulated copper wire designed for durability and high performance. Rated for 105°C and 600V, it complies with UL, CSA, and environmental standards such as RoHS2 and REACH. This halogen-free wire is available in multiple vibrant colors, ideal for industrial, electronic, and electrical wiring applications. Its flexible design and broad temperature range from -40°C to +105°C make it suitable for various environments. Order now online to ensure reliable connections and compliance with safety standards and regulations.
Buy AlphaWire 67050 now and experience unmatched reliability and performance in your wiring projects.
