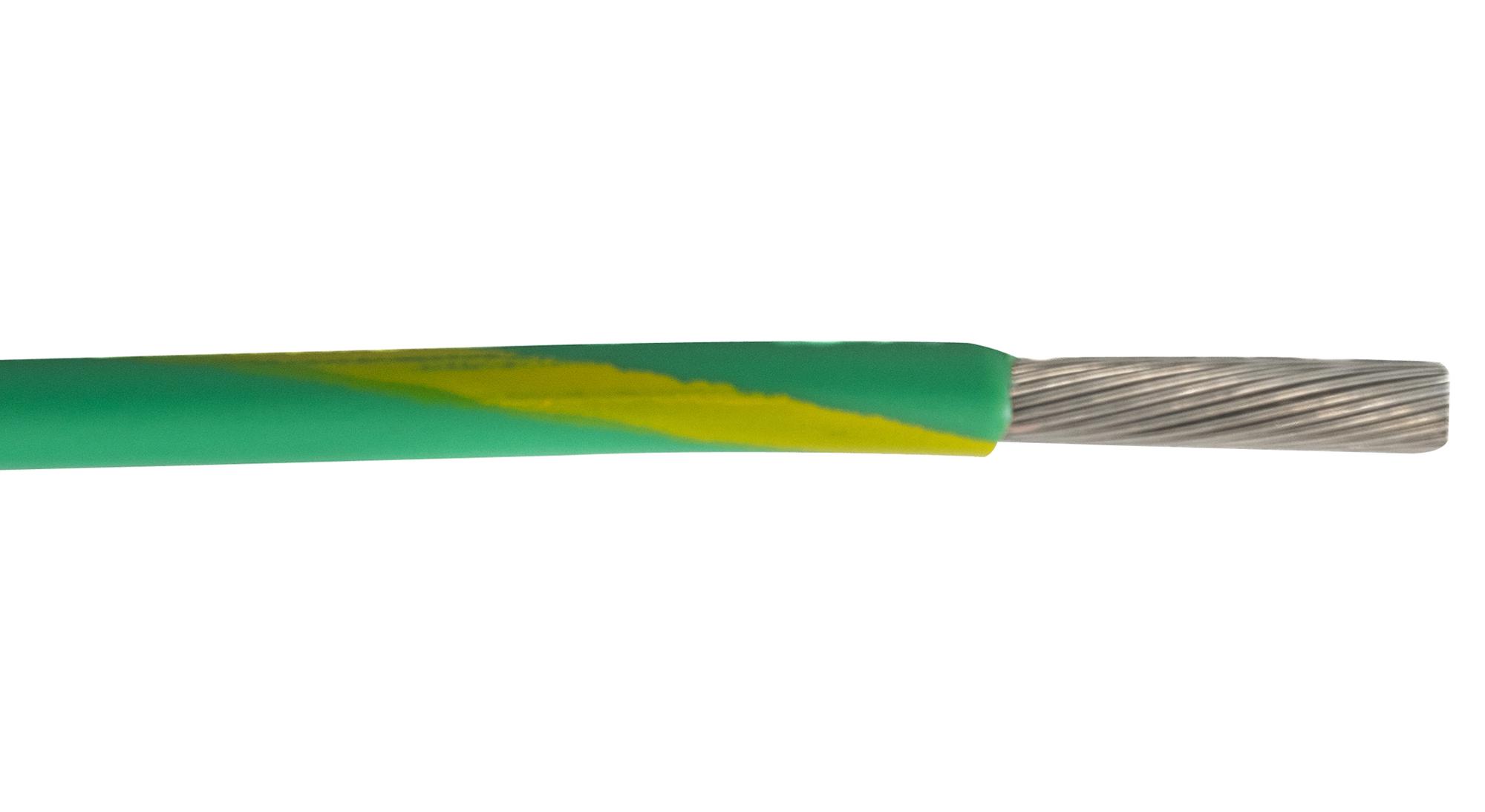

ALPHA WIRE 67075GY033 Hookup Wire
This is a high-quality tinned copper hookup wire designed for general electrical applications. It features a 0.75 mm2 cross-sectional area, modified polyphenyl insulation, and a temperature rating of -40 to 105°C. The wire is rated for 600 V and complies with UL AWM 11028, CSA AWM, and IEC 60332-2 flame behavior standards. Available in multiple colors including black, red, white, and blue, it is suitable for use in various electrical and electronic installations requiring reliable performance and flexibility under demanding conditions.
ALPHA WIRE 67075GY033 Hookup Wire Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 0.75 mm2 (42/0.16)
- Insulation Thickness: 0.260 mm
- Maximum Temperature: 105°C
- Voltage Rating: 600 V
- Flame Resistance: IEC 60332-2
- Color Options: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
- Manufacturing Standards: UL AWM 11028, CSA AWM, IEC 60332-2
- Bend Radius: 10X Cable Diameter
- Operating Temperature Range: -40°C to 105°C
- DCR (Resistance): 27 Q/km at 20°C
- Packaging: 500 M, 100 M, 50 M spools, dimensions vary slightly
Buy the Buy AlphaWire Part Number 67075GY033 Online
Purchase AlphaWire hookup wire with part number 67075GY033 online today and enjoy top-grade insulation, excellent flexibility, and superior electrical safety. This 0.75 mm2 tinned copper wire is rated for 600 V, features UL and CSA approvals, and is suitable for various electrical and electronic applications. With a temperature range from -40°C to 105°C, this wire ensures durability in demanding environments. Available in multiple colors for easy identification, it’s perfect for wiring harnesses, control panels, and assembly work. Order now for fast, reliable delivery.
Buy AlphaWire 67075GY033 high-flexibility hookup wire now and ensure reliable electrical connections in your industrial and electronic projects.
