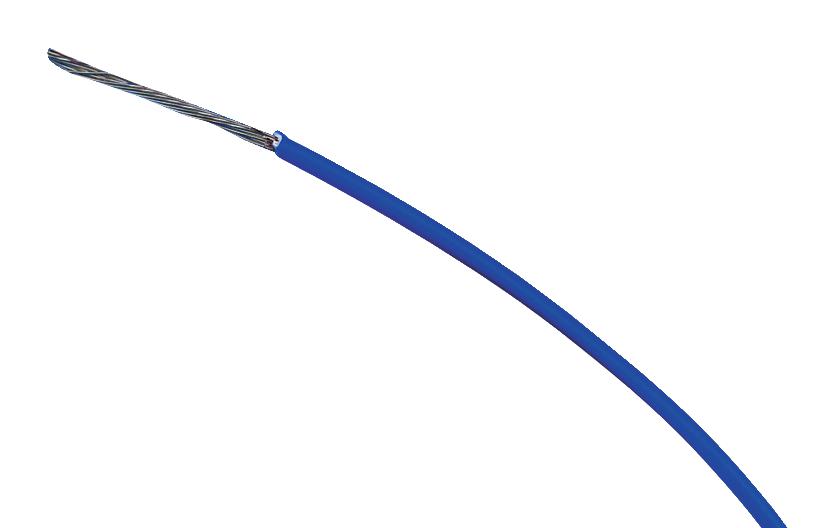

ALPHA WIRE 6710BL005 EcoWire
EcoWire combines high performance with environmental sustainability, utilizing modified polyphenylene ether insulation that is up to 45% smaller and 40% lighter than PVC. It offers excellent chemical, oil, and solvent resistance, along with RoHS and REACH compliance. Suitable for critical, demanding applications, EcoWire’s tinned copper conductors are stranded or solid, with insulation that withstands temperature ranges from -40°C to +105°C. It’s eco-friendly, recyclable, halogen-free, and designed for minimizing environmental impact while maintaining electrical integrity and mechanical durability.
ALPHA WIRE 6710BL005 EcoWire Specifications:
- Conductor Size: AWG 28 to 14 (0.08 mm to 2.08 mm)
- Stranding: Stranded or solid tinned copper conductors
- Insulation Material: Modified polyphenylene ether (mPPE)
- Temperature Range: -40°C to +105°C
- Dimensions: Wire diameter varies from 0.020 inches to 0.083 inches (0.51 mm to 2.11 mm)
- Insulation Thickness: Approximately 0.010 inches (0.25 mm)
- Insulation Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
- Voltage Rating: Suitable for 600 V applications
- Environmental: RoHS, RoHS2, REACH compliant; halogen-free; recyclable
- Compliance: UL AWM 11028 VW-1, CSA AWM, ISO 6722, IEC 60332-2 flame test
- Availability: 100 ft, 1000 ft, 4000 ft, and 25,000 ft rolls
Buy the AlphaWire Series EcoWire: 600 V EcoWire Cables 28-14 AWG
Purchase AlphaWire EcoWire now for environmentally friendly, high-performance wiring solutions. Designed for demanding environments, EcoWire offers size reduction, lightweight convenience, and exceptional chemical resistance. Its modified polyphenylene ether insulation ensures high-temperature resilience from -40°C to +105°C, making it suitable for critical industrial, control, and automation applications. Available in multiple lengths, EcoWire combines durability with eco-conscious features—be sure to buy online for fast shipping, reliable quality, and the environmental benefits of recyclable, halogen-free wiring solutions.
Get AlphaWire EcoWire today—built for durability, environmental safety, and performance in harsh conditions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6710BL005?
You can click on the BUY or RFQ button to purchase 6710BL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6710BL005?
You can download the 6710BL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6710BL005?
ALPHA WIRE
