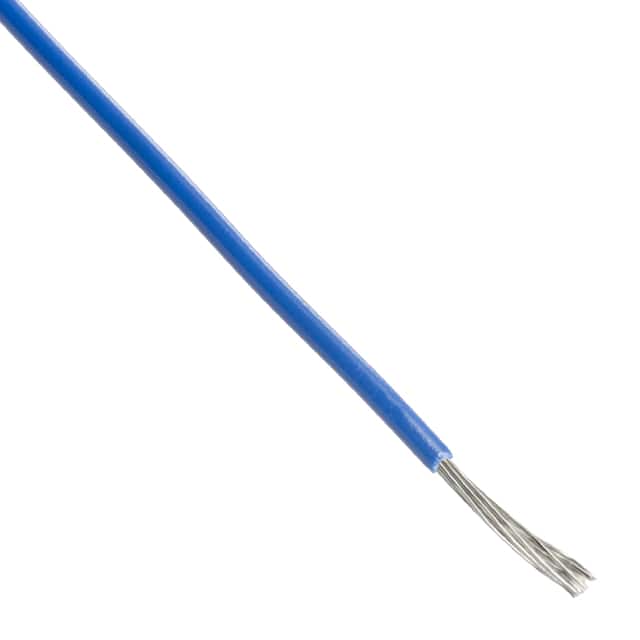

ALPHA WIRE 6716BL001 Hook Up Wire
ALPHA WIRE's 6716 BL001 is a 16 AWG hook-up wire designed for a wide range of applications requiring reliable insulation and electrical performance. Constructed with a 26/30 stranded copper conductor and a modified polyphenylene ether (PPE) insulation, this wire offers excellent heat resistance, chemical resistance, and mechanical strength. It is commonly used in appliance wiring, automation systems, and various industrial applications where flexibility and durability are essential. The wire is RoHS compliant, ensuring adherence to environmental regulations, and is available in a variety of colors to meet specific identification needs. Its robust construction and reliable performance make it a suitable choice for demanding environments.
ALPHA WIRE 6716BL001 Hook Up Wire Specifications:
- Conductor AWG: 16 (26/30)
- Insulation Material: Modified Polyphenylene Ether
- Insulation Wall Thickness: 0.011"
- Overall Diameter: 0.081" +/- 0.002"
- Temperature Range: -40 to 105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 20.4 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Inductance: 0.03 µH/ft, Nominal
- Conductor DCR: 4.4 Ω/1000ft @20°C, Nominal
- UL Style: AWM/STYLE 11028
- CSA Rating: C(RU) AWM I A/B FT1
- Halogen-Free: Yes
- Colors Available: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet, Green/Yellow, Dark Blue
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Lead Limit: <0.1%
- Mercury Limit: <0.1%
- Cadmium Limit: <0.01%
- Hexavalent Chromium Limit: <0.1%
- PBB Limit: <0.1%
- PBDE Limit: <0.1%
- DEHP Limit: <0.1%
- BBP Limit: <0.1%
- DBP Limit: <0.1%
- DIBP Limit: <0.1%
