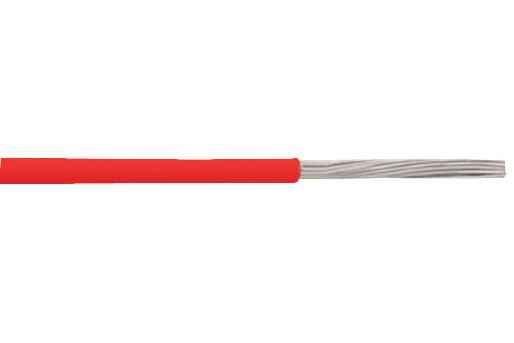

Alpha Wire 6716RD005 Electrical Wire
The Alpha Wire ECOWIRE 16 AWG cable is a Halogen-Free, flame-retardant wire suitable for various electrical applications. It features a modified polyphenylene insulation, with a voltage rating of 600V and operating temperature range from -40°C to 105°C. Available in multiple colors, including white, black, red, and blue, it complies with UL and CSA standards, and meets European RoHS and REACH regulations. Its physical properties include a bend radius of 10 times the cable diameter and a maximum pull tension of 20.4 lbs. Ideal for industrial wiring, control systems, and electronic equipment, it ensures safety, durability, and environmental compliance.
Alpha Wire 6716RD005 Electrical Wire Specifications:
- Conductor: 16 (26/30) AWG TC
- Insulation Material: Modified Polyphenylene
- Insulation Wall Thickness: 0.081+/- 0.002 inches
- Voltage Rating: 600V
- Operating Temperature: -40°C to 105°C
- Flame Resistance: UL VW-1, CSA FT1
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 20.4 lbs
- Electrical Inductance: 0.03 wH/ft
- Conductor DCR: 4.4 Q/1000ft @20°C
- Approval Standards: UL JAWMSTYLE 11028, CSA, CE
- RoHS and REACH Compliant: Yes
- Operating Flexibility: Suitable for both continuous and spooled installation
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
Buy the AlphaWire Series ECOWIRE 16 AWG Cable: 6716RD005
Purchase the AlphaWire Series ECOWIRE 16 AWG cable online today and benefit from top-quality, halogen-free insulation rated for 600V operation. Designed for durability and safety, this cable features flame-retardant properties, compliance with UL, CSA, RoHS, and REACH standards, and a flexible bend radius for easy installation. Available in multiple colors and lengths, it is ideal for control systems, industrial wiring, and electronic devices. Secure your supply of high-performance wiring solutions with a simple online order today.
Order your AlphaWire Series ECOWIRE 16 AWG cable today and ensure reliable performance for your electronic and industrial wiring projects.
Frequently Asked Questions
Where can I buy Alpha Wire 6716RD005?
You can click on the BUY or RFQ button to purchase 6716RD005 from an authorized Alpha Wire distributor.
How do I troubleshoot issues or seek technical support for part 6716RD005?
You can download the 6716RD005 datasheet or visit the Alpha Wire website for support.
Who is the manufacturer of 6716RD005?
Alpha Wire
