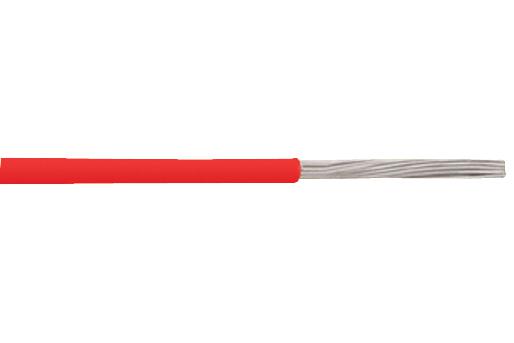

ALPHA WIRE 6717RD001 Electrical Cable
The AlphaWire 6717 series comprises high-quality, halogen-free, 14 AWG electrical cable designed for versatile wiring applications. It features a modified polyphenylene insulation wall, UL and CSA certifications, and complies with EU RoHS and REACH standards. Suitable for internal and external wiring, this flame-retardant cable offers excellent electrical performance with a voltage rating of 600 V, low inductance of 0.03 wH/ft, and a conductor resistance of 2.8 Q/1000ft at 20°C. Its flexible construction supports easy installation with a minimum bend radius of 10X cable diameter and a maximum pull tension of 32 lbs.
ALPHA WIRE 6717RD001 Electrical Cable Specifications:
- Conductor: 14 (41/30) AWG TC, 0.074 inches
- Insulation: Modified Polyphenylene, 0.096 +/- 0.002 inches
- Voltage Rating: 600 V
- Temperature Range: -40°C to +105°C
- Flame Test: VW-1, UL 11028 105°C / 600V, CSA FT1
- Mechanical: Bend radius 10X cable diameter, pull tension 32 lbs max
- Electrical: Inductance 0.03 wH/ft, DCR 2.8 Q/1000ft @20°C
- Colors: Multiple including white, black, red, green, yellow, blue, brown, orange, slate, violet, green/yellow, dark blue
- Applicable Standards: IEC 60332-2, CE Low Voltage Directive 2006/95/EC
- Materials: Halogen-free, RoHS and REACH compliant
Buy the Buy AlphaWire Cable Part Number 6717RD001 Online
Purchase the AlphaWire 6717 series electrical cable online and enjoy fast, secure delivery of a high-quality, halogen-free wire suitable for diverse wiring needs. Certified for UL, CSA, and RoHS standards, this flexible 14 AWG cable offers exceptional electrical performance, flame retardancy, and resistance to harsh environmental conditions. Its durable insulation and low inductance ensure safety and efficiency in commercial, industrial, and residential applications. Trust AlphaWire for dependable components that meet rigorous industry standards and regulatory requirements.
Order your AlphaWire series 6717RD001 flexible high-performance cable today and ensure reliable, compliant wiring for your electrical projects.
