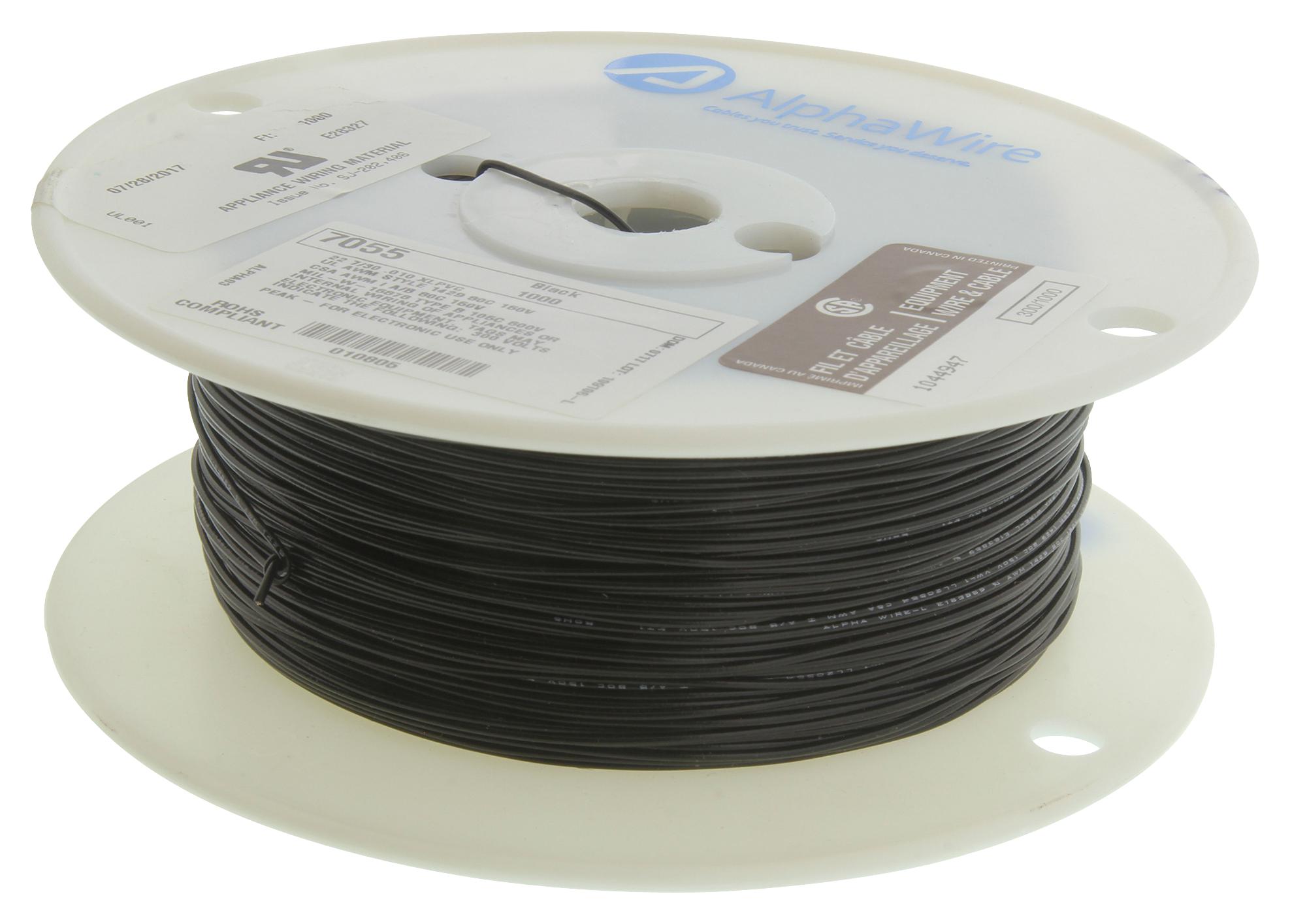

ALPHA WIRE 7055BK001 Hook-up Wire
The 7055 BK001 hook-up wire is a 1000-foot length featuring a stranded tinned copper conductor and irradiated PVC insulation. Suitable for control cabinets, machine tools, ovens, and off-road equipment, it meets MIL-W-16878E type-B standards, offering resistance to wear, abrasion, cuts, soldering heat, oil, solvents, and chemicals. This wire ensures ease of handling, stripping, and termination, with excellent electrical characteristics like a voltage rating of 150 V, a nominal inductance of 0.05 µH/ft, and a conductor DCR of 16.2 Ω/1000 ft at 20°C. It supports a maximum pull tension of 5.5 lbs and operates over -55°C to 105°C, making it ideal for industrial automation, defense, aerospace, and automotive applications.
ALPHA WIRE 7055BK001 Hook-up Wire Specifications:
- Conductor: Tinned copper, stranded
- Insulation: Irradiated cross-linked PVC (XLPVC)
- Length: 1000 feet
- Voltage Rating: 150 V
- Temperature Range: -55°C to +105°C
- Maximum Pull Tension: 5.5 lbs
- Inductance: 0.05 µH/ft
- Conductor Resistance: 16.2 Ω/1000 ft at 20°C
- Flexibility: Resistant to wear, abrasion, cuts, soldering heat, oil, solvents, and chemicals
- Compliance: MIL-W-16878E type-B
- Application: Control cabinets, machine tools, high-temperature ovens, off-road construction equipment
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
Buy the Buy AlphaWire 7055BK001 Part Number 7055BK001 Online
Discover the high-quality AlphaWire hook-up wire, 7055 BK001, available for convenient online purchase. This 1000-foot spool features a tinned copper conductor with irradiated PVC insulation, ensuring durability and resistance to harsh environments. Perfect for control panels, machinery, ovens, and off-road equipment, it adheres to MIL standards and offers excellent electrical properties. Easy to strip and terminate, this wire supports a maximum pull of 5.5 lbs and operates over a wide temperature range. Purchase online for reliable, high-performance wiring tailored for industrial, military, aerospace, and automotive applications, ensuring optimal connection integrity and safety.
Buy AlphaWire 7055BK001 now and experience unmatched reliability and performance in industrial, defense, and aerospace wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 7055BK001?
You can click on the BUY or RFQ button to purchase 7055BK001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 7055BK001?
You can download the 7055BK001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 7055BK001?
ALPHA WIRE
