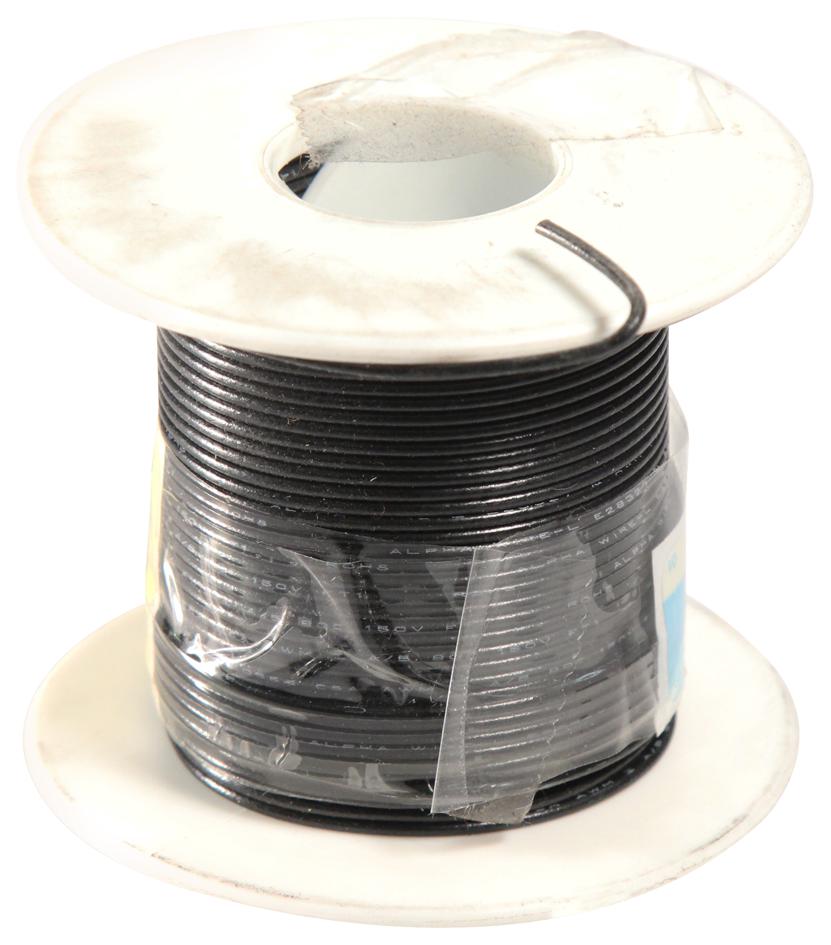

ALPHA WIRE 7056BK005 Control Cable
This high-quality electrical wire meets UL and CSA standards, with a temperature rating of -55°C to 105°C and voltage capability of 150V. Constructed with 20 AWG TC conductors and 0.010" PVC insulation, it offers flexibility and reliability for various industrial applications. Suitable for control, signal, and power wiring, it features a bend radius of 10 times its diameter and a maximum pull tension of 8.7 lbs. Its environmental compliance includes RoHS 2 and REACH certifications, ensuring safe, eco-friendly use in demanding environments. Suitable for manufacturing and electrical installations requiring proven durability and safety.
ALPHA WIRE 7056BK005 Control Cable Specifications:
- Conductor Gauge: 20 AWG (7/28) TC
- Insulation Wall Thickness: 0.010" PVC, irradiated
- Temperature Rating: -55°C to 105°C
- Voltage Rating: 150 V
- Conductor Resistance: 10.1 Q/1000ft @20°C
- Inductance: 0.04 wH/ft
- Bend Radius: 10X cable diameter
- Pull Tension: 8.7 lbs maximum
- Flange Dimensions (1000 ft spool): 6.5 x 2 x 1.9 inches
- Flange Dimensions (100 ft spool): 2.75 x 2 x 1.125 inches
- Certifications: UL JAWMSTYLE 1429 80°C / 150V, CSA AWM IAB 80°C / 150V, military MIL-W-16878E TYPE B 105°C / 600V
- Materials: PVC insulation, copper conductors
- Environmental Standards: RoHS 2, REACH, California Proposition 65
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
- Applicable Standards: UL, CSA, Military
- Weather Resistance: Suitable for industrial environments
Buy the AlphaWire 7056 U–Reliable Control Cable for Industrial Applications
Purchase the AlphaWire control cable now for your industrial wiring needs. Manufactured with 20 AWG conductors and PVC insulation, this UL and CSA certified cable offers excellent performance with a temperature range from -55°C to 105°C. It features a voltage capacity of 150V, a bend radius of 10X its diameter, and maximum pull tension of 8.7 lbs. Certified for RoHS 2 and REACH, it ensures safety and environmental compliance. Ideal for control, signal, and power wiring in demanding industrial environments, providing reliable durability and flexibility.
Order your AlphaWire Series7056 control cable today and ensure your industrial wiring projects benefit from dependable, UL CSA certified quality.
