ALPHA WIRE 852205BK001 Control Cable
This is a high-performance control cable designed for flexible, industrial use in automation and electrical systems. Made with 22 AWG bare copper conductors, it features PVC insulation and a PVC jacket for oil resistance and durability. The cable supports continuous flexing with flexible twisting, making it ideal for robotics, machinery, and control panels. Compliant with UL 2587 and CSA standards, it operates effectively at up to 600V, with excellent electrical and mechanical properties suitable for demanding environments. Its robust construction ensures reliability across various industrial applications.
ALPHA WIRE 852205BK001 Control Cable Specifications:
- Conductor: 22 AWG bare copper, 41/38 strands
- Insulation: PVC, 0.022" wall thickness
- Jacket: PVC, 0.035" wall, Oil resistant, Black color
- Twist Rate: 6.0 twists per foot
- Bending Radius: 8X cable diameter (static and dynamic)
- Voltage Rating: 600V
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Capacitance: 22.9 pF/ft @1 kHz
- Inductance: 0.22 uH/ft
- Conductor Resistance: 16.4 Ohms per 1000 ft @ 20°C
- Overall Dimensions: Flange x Traverse x Barrel - 16x11x8 inches
- Compliance: UL style 10012, CSA, VDE 0472, CE Low Voltage, RoHS, REACH, California Prop 65

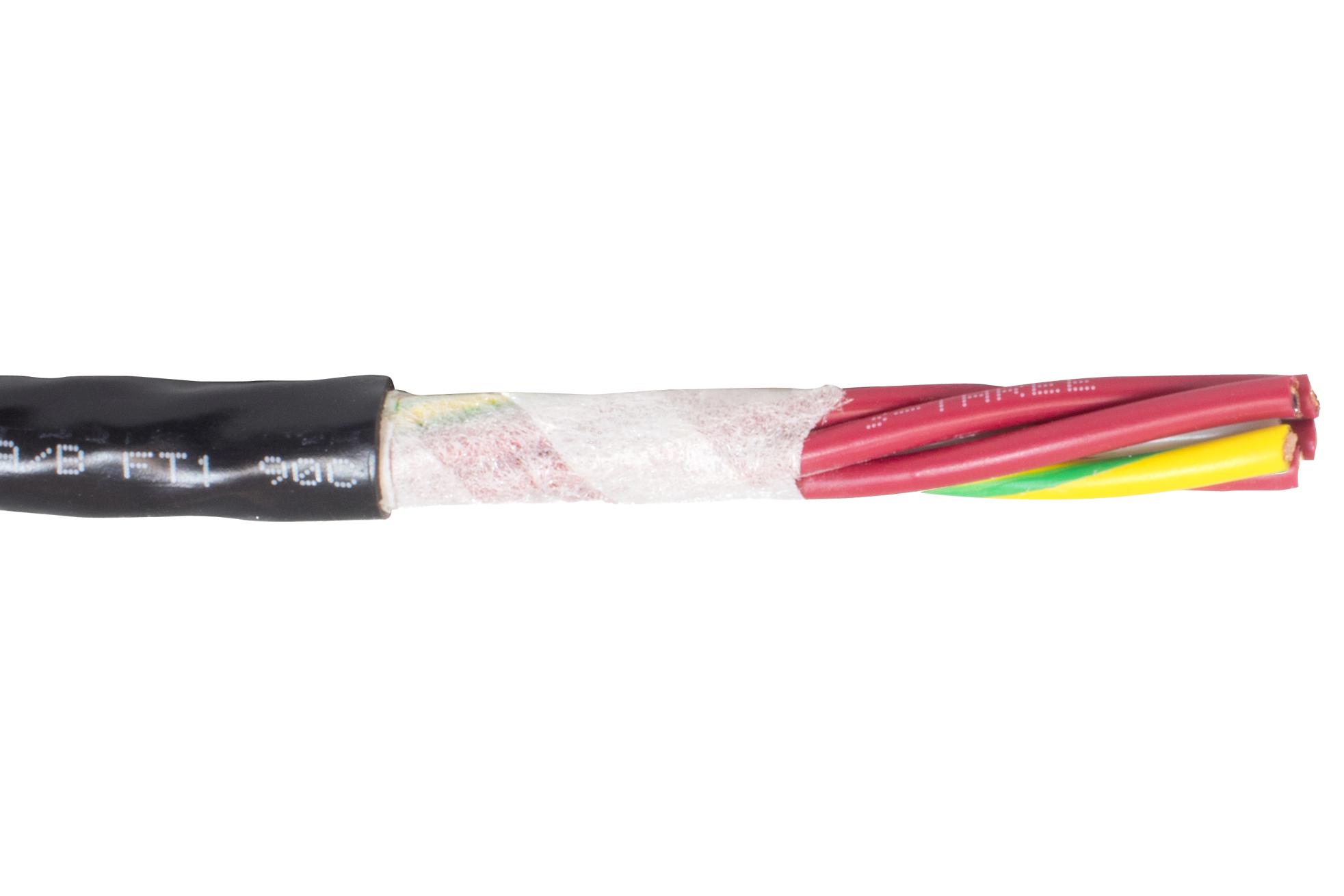

Buy the AlphaWire 852205 U–Reliable Control Cable for Industrial Applications
Experience the superior quality of AlphaWire control cable designed for industrial automation and flexible wiring setups. This 22 AWG cable features PVC insulation and jacket, supporting continuous flexing and reliable performance at up to 600V. Ideal for applications like robotics, machinery, and control panels, it combines mechanical strength with excellent electrical properties. Certified with UL and CSA standards, it offers essential durability and safety for demanding industrial environments. Order online today to ensure your projects benefit from dependable, high-quality wiring solutions.
Get AlphaWire 852205 today—built for durability and flexible control in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 852205BK001?
You can click on the BUY or RFQ button to purchase 852205BK001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 852205BK001?
You can download the 852205BK001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 852205BK001?
ALPHA WIRE
