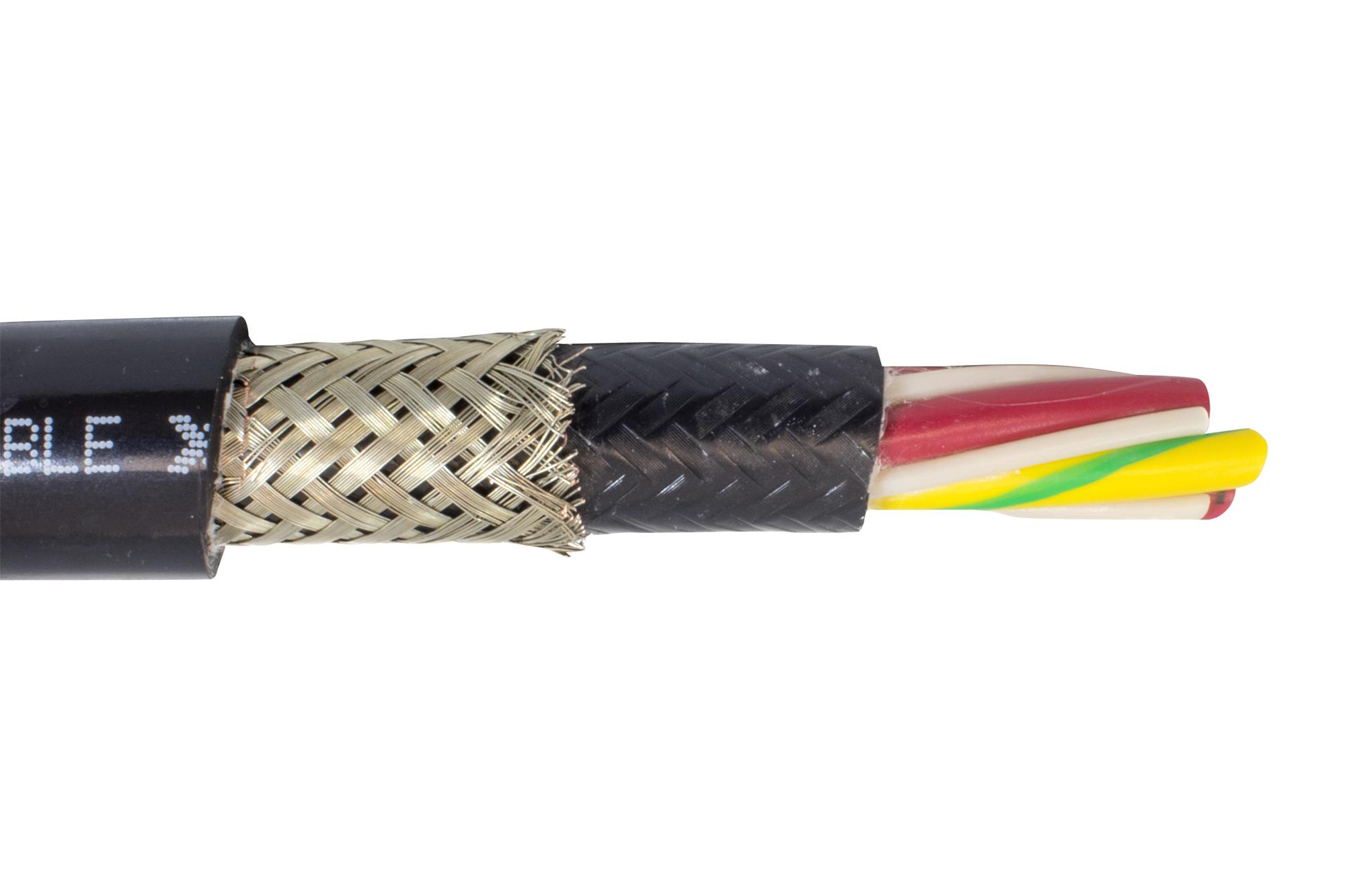

ALPHA WIRE 852210CYBK005 Control Cable
This high-performance control cable features a PVC insulation and jacket with an oil-resistant design, providing reliable operation in demanding industrial environments. It complies with UL, CSA, VDE, and EU standards, ensuring safety and quality for flexible, continuous movement applications. The cable has 22 AWG bare copper conductors twisted into a cable with a 4.0 twists/foot, with an overall diameter of approximately 0.389 inches for the jacket. Suitable for control and instrumentation wiring, it supports 600V rating and maintains flexibility across temperature ranges from -40°C to 90°C. Its shielding offers 85% coverage for electromagnetic protection.
ALPHA WIRE 852210CYBK005 Control Cable Specifications:
- Conductors: 22 AWG Bare Copper
- Insulation: PVC, 0.022 inch wall
- Jacket: PVC, oil resistant, 0.030 inch wall, black color
- Shield: Tinned copper braid, 85% coverage
- Conductor Diameter: 0.074 inch
- Twist: 4.0 twists/foot
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Voltage Rating: 600V
- Capacitance: 31 pF/ft @1 kHz
- Ground Capacitance: 56 pF/ft @1 kHz
- Inductance: 0.22 μH/ft
- Conductor DCR: 16.1 Ω/1000ft @ 20°C
- Shield DCR: 1.53 Ω/1000ft @ 20°C
- Cable Lengths: 1000 ft, 500 ft, 100 ft
- Compliance: UL, CSA, VDE, CE, RoHS, REACH
- Maximum Pull Tension: 66 lbs
Buy the Alpha Wire 852210CY – Reliable Control Cable for Industrial Applications
Purchase the Alpha Wire 852210CY control cable online today to ensure your industrial projects benefit from superior flexibility, durability, and safety. Featuring PVC insulation and jacket, 22 AWG copper conductors, shielded and oil resistant, this cable supports 600V and operates effectively from -40°C to 90°C. Ideal for control and instrumentation wiring, it is UL, CSA, VDE, and CE compliant, with roHS and REACH certifications. Easy to handle and install, this control cable guarantees optimal performance in demanding environments. Order now for fast delivery and dependable quality.
Order your Alpha Wire 852210CY control cable today and enhance your industrial wiring projects with our durable, flexible, and reliable electrical solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 852210CYBK005?
You can click on the BUY or RFQ button to purchase 852210CYBK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 852210CYBK005?
You can download the 852210CYBK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 852210CYBK005?
ALPHA WIRE
