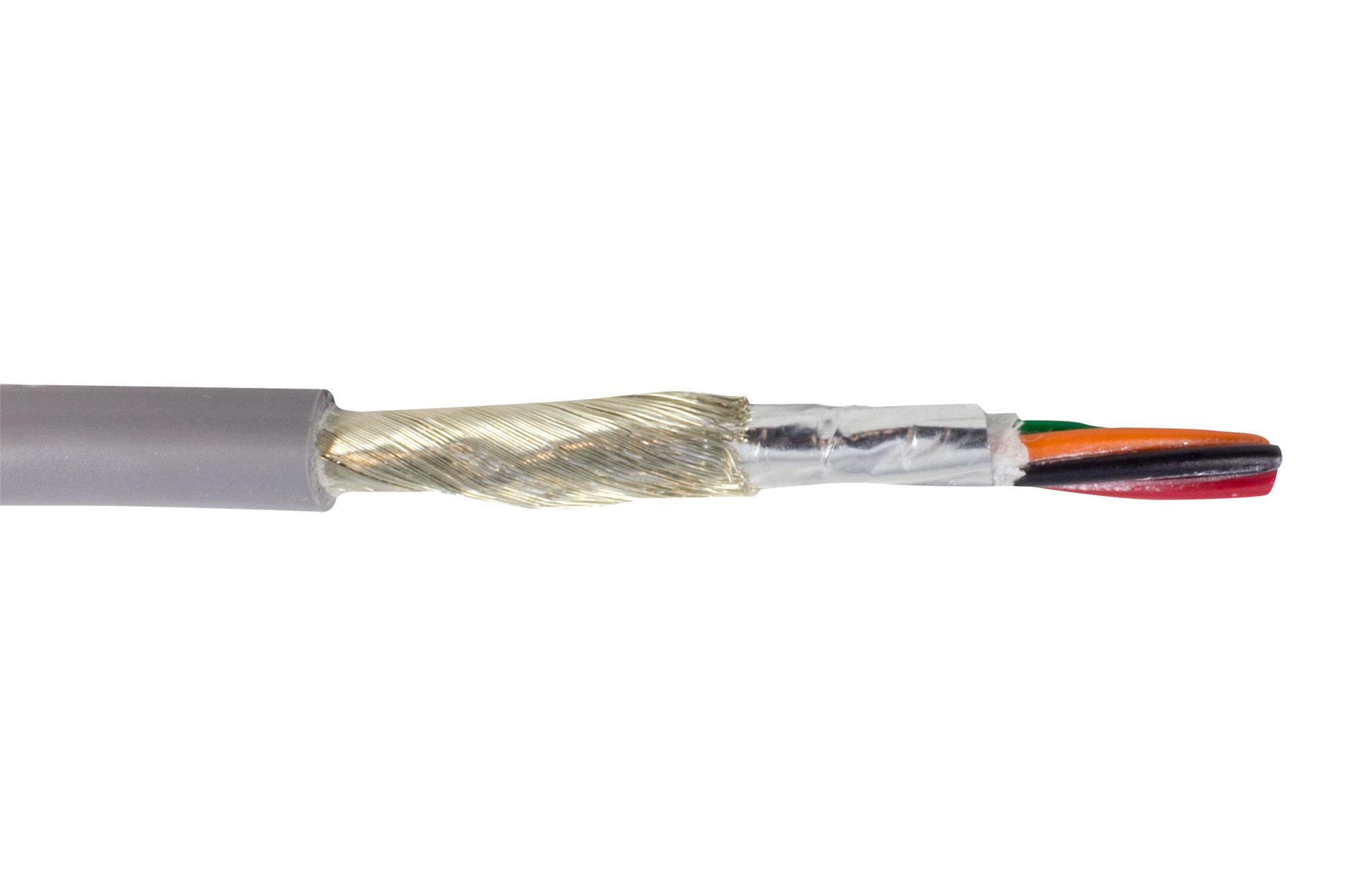

ALPHA WIRE 862003CYSL005 Flexible Data Cable
This continuous flex data cable by Alpha Wire is designed for reliable signal transmission in industrial and automation applications. It features tinned copper conductors, PVC insulation, and a flexible jacket for easy routing. The cable supports a voltage rating of 300 V and is rated for temperatures between -10°C and 105°C, with excellent sunlight and oil resistance. It complies with UL, CSA, and CE standards, making it a durable choice for harsh environments. The cable's construction includes a shield with foil and drain wire, ensuring signal integrity and interference protection. Available in slate color, it is suitable for various industrial wiring needs.
ALPHA WIRE 862003CYSL005 Flexible Data Cable Specifications:
- Voltage Rating: 300 V
- Temperature Range: -10°C to 105°C (static and dynamic)
- Conductor Material: Tinned copper
- Conductor Diameter: AWG 20 (19/32")
- Insulation Wall Thickness: 0.010" PVC
- Jacket Wall Thickness: 0.040" PVC
- Jacket Color: Slate
- Shield: Foil with drain wire, 25% overlap minimum
- Cable Diameter: 0.234 inches ± 0.011 inches
- Bend Radius: 8 times cable diameter
- Pull Tension: Max 34 lbs
- Capacitance: 43 pF/ft @1 kHz
- Ground Capacitance: 77 pF/ft @1 kHz
- Inductance: 0.16 pH/ft
- DCR Conductor: 9.4 Ω/1000 ft @20°C
- DCR Shield: 5.3 Ω/1000 ft @20°C
- Environmental Resistance: Sunlight and oil resistant
- Compliance: UL, CSA, CE, RoHS, REACH
Buy the Alpha Wire Series XTRAGUARD Data Cable: 862003CY
Order the Alpha Wire 862003CY flexible data cable online today for superior signal integrity in demanding industrial environments. With tinned copper conductors, PVC insulation, and foil shielding, this cable offers excellent durability, resistance to sunlight and oil, and compliance with major safety standards. Ideal for automation and control systems, it ensures robust performance even in harsh conditions. Purchase now to benefit from fast shipping and quality assurance, making your projects more reliable and efficient with Alpha Wire’s trusted solutions.
Buy Alpha Wire 862003CY now and experience unmatched reliability, flexibility, and protection for industrial signal transmission tasks.
