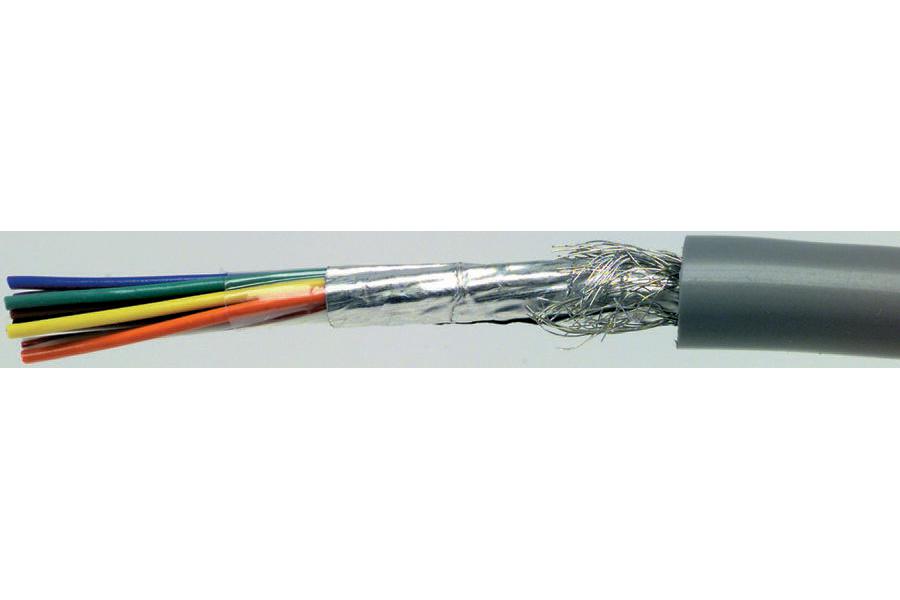

ALPHA WIRE 86318CYSL005 Shielded Data Cable
The 86318CY SL005 is an 18-conductor shielded cable designed for high-flex and continuous-flex industrial applications. It features 22 AWG tinned copper conductors with semi-rigid PVC insulation, a slate oil-resistant PVC jacket, and a flexible aluminum/Mylar tape shield. Rated for 300V, it provides excellent EMI resistance and durability with a maximum pull tension of 115 lbs. Capacitance is 38 pF/ft conductor-to-conductor, 68 pF/ft ground at 1 kHz. It ensures reliable performance in robotics, automation, and process control environments, complying with UL, CE, CSA standards, and RoHS directives.
ALPHA WIRE 86318CYSL005 Shielded Data Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 22 AWG (19/34)
- Insulation Wall Thickness: 0.010"PVC, semi rigid
- Jacket Material: PVC, slate color, 0.040" wall
- Shield: Aluminum/Mylar tape, 25% overlap, foil facing out
- Shield Drain Wire: 26 AWG tinned copper
- Voltage Rating: 300V
- Capacitance: 38 pF/ft conductor-to-conductor, 68 pF/ft ground at 1 kHz
- Inductance: 0.17 µH/ft
- Conductor DC Resistance: 15.5 Ω/1000 ft at 20°C
- Maximum Pull Tension: 115 lbs
- Temperature Range: -10°C to 105°C
- Bend Radius: 8× cable diameter static/dynamic
- Sunlight Resistance: Yes
- Applicable Standards: UL AWM 2661, CSA Type CMG, CE RoHS
- Shielding: Aluminum/Mylar tape, foil facing out
- Cable Lengths: 100, 500, 1000 ft spools
Buy the Alpha Wire 86318CY U+2013 Reliable Shielded Data Cable for Industrial Applications
Enhance your industrial automation and control systems by ordering the Alpha Wire 86318CY shielded data cable online today. Designed with 22 AWG tinned copper conductors, semi-rigid PVC insulation, and aluminum/Mylar shielding, this cable offers excellent flexibility, durability, and EMI resistance. With a maximum tension of 115 lbs and rated for 300V, it’s perfect for robotics, automation, and process control environments. Available in various lengths, it guarantees high performance, compliance with UL, CE, CE, and RoHS standards, ensuring your projects run smoothly and efficiently.
Order your Alpha Wire 86318CY shielded data cable today and ensure reliable EMI protection for industrial automation and control projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 86318CYSL005?
You can click on the BUY or RFQ button to purchase 86318CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 86318CYSL005?
You can download the 86318CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 86318CYSL005?
ALPHA WIRE
