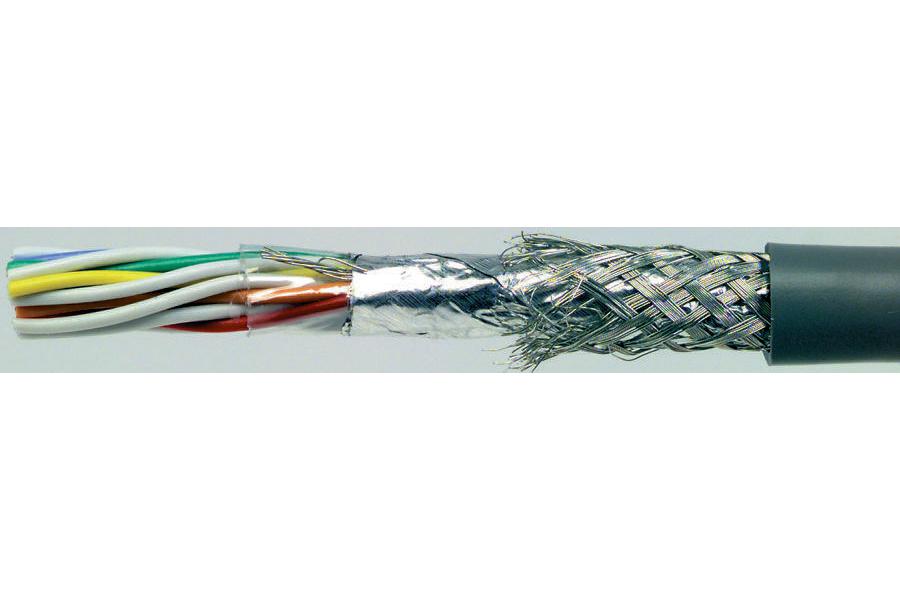

ALPHA WIRE 86514CYSL002 Shielded Data Cable
The 14-Pair Xtra-Guard® Continuous Flex Shielded Data Cable is a 500-foot cable designed for high-flex, high torsion, and continuous-flex applications. It features finely stranded tinned copper conductors with lubricated semi-rigid PVC insulation, ensuring reliable performance in demanding environments. The cable's rounded geometry provides liquid-tight installation rated for IP67 or NEMA 6 standards. It is shielded with a minimum of 25% overlap aluminum/polyester foil and 85% coverage tinned copper braid for excellent EMI interference resistance, offering durability with up to 6 million flex cycles. Ideal for communications, networking, robotics, and industrial automation.
ALPHA WIRE 86514CYSL002 Shielded Data Cable Specifications:
- Number of Pairs: 14
- Conductor Material: Tinned Copper
- Conductor Diameter: 26 AWG (7/34)
- Insulation: PVC, 0.010" Wall, Semi Rigid
- Insulation Diameter: 0.039"
- Shielding: Aluminum/Mylar Tape with 25% Overlap, Tinned Copper Braid with 85% Coverage
- Jacket Wall Thickness: 0.053"
- Jacket Material: PVC, Slate Color
- Maximum Pull Tension: 72 lbs
- Temperature Rating: 105°C (static), 105°C (dynamic)
- Voltage Rating: 300V
- Mutual Capacitance: 21.4 pF/ft @1 kHz
- Ground Capacitance: 39 pF/ft @1 kHz
- Characteristic Impedance: 89 ohms
- Inductance: 0.2 uH/ft
- DCR (Conductors): 42 ohms/1000 ft @20°C
- DCR (Shield): 2.03 ohms/1000 ft @20°C
- Bending Radius: 10x cable diameter (static), 15x (dynamic)
- Length Options: 500 ft, 1000 ft, 100 ft
Buy the Buy Alpha Wire Series 86514CY Part Number 86514CYSL002 Online
Purchase the Alpha Wire 14-Pair Xtra-Guard® Continuous Flex Data Cable online today. With excellent EMI shielding, high flexibility, and rugged construction, it’s ideal for industrial automation, robotics, and networking. The shielded design with foil and braid ensures high interference resistance, while the durable PVC jacket provides IP67 or NEMA 6 compatibility. With a maximum pull tension of 72 lbs and long lifespan of up to 6 million flex cycles, this cable guarantees performance in demanding environments. Buy now for easy online ordering and fast delivery.
Order your Alpha Wire Series 86514CY 14-Pair Xtra-Guard Continuous Flex Data Cable today and ensure reliable, high-flex data transmission in industrial environments.
