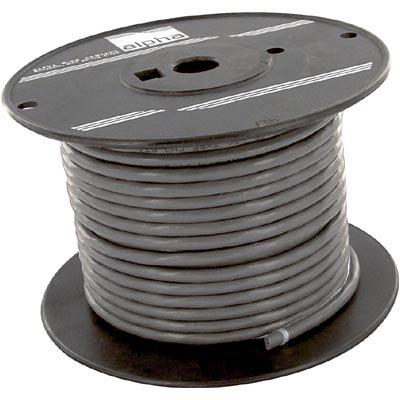

ALPHA WIRE 881802SL001 Shielded Cable
The 881802 series cable is a high-quality, UL and CSA approved shielded cable designed for electrical and electronic applications. It features 18 AWG copper conductors with PVC insulation and a PVC jacket, ensuring flexibility and durability. Suitable for low-voltage environments, it offers excellent electrical characteristics including 300V voltage rating, capacitance of 33 pF/ft, and characteristic impedance of 659 ohms. Its RoHS and REACH compliance make it environmentally friendly, ideal for safe installation in commercial and industrial settings, providing reliable performance in various electrical systems.
ALPHA WIRE 881802SL001 Shielded Cable Specifications:
- Conductor: 18 AWG, 16/30 strands TC copper
- Insulation: PVC, 0.016-inch wall, color-coded (Slate)
- Jacket: PVC, 0.032-inch wall, color: Slate, diameter: 0.222 inches (max 0.232 inches)
- Voltage Rating: 300V
- Capacitance: 33 pF/ft at 1 kHz
- Impedance: 659 ohms
- Inductance: 0.18 μH/ft
- Operating Temperature Range: -20°C to 90°C
- Bend Radius: 10x cable diameter
- Pull Tension: 25 lbs maximum
- Overall Lengths Available: 1000 ft, 500 ft, 100 ft
- Certifications: UL Style 2464, CSA AWM II AB 90°C / 300V, CE Low Voltage Directive
Buy the Alpha Wire Series 881802: 18 AWG Shielded Cable
Purchase the Alpha Wire Series 881802 shielded cable online today to benefit from reliable, UL and CSA approved performance. This 18 AWG copper cable features PVC insulation and jacket, providing excellent flexibility and durability for low-voltage electronic and electrical projects. RoHS and REACH compliant, it is ideal for various industrial and commercial applications. With multiple lengths available, your installation will be efficient and seamless. Trust Alpha Wire for quality and safety in every connection, and order now for fast delivery and superior performance.
Order your Alpha Wire Series 881802 18 AWG shielded cable today and ensure your electrical projects meet the highest safety and performance standards.
Frequently Asked Questions
Where can I buy ALPHA WIRE 881802SL001?
You can click on the BUY or RFQ button to purchase 881802SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 881802SL001?
You can download the 881802SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 881802SL001?
ALPHA WIRE
