ALPHA WIRE 882209SL005 Electrical Cable Assembly
This high-quality, UL and CSA-certified cable assembly features a 22 AWG thermoplastic conductor with PVC insulation, rated for 300V and 105°C. Designed for reliable electrical connections, it offers flexibility with a bend radius of 10 times the cable diameter and a maximum pull tension of 49 lbs. The cable's overall construction includes a 0.032-inch PVC jacket, making it suitable for various environmental conditions. Ideal for industrial and control applications, this cable ensures compliance with RoHS and Reach standards, providing a durable solution for electrical wiring needs.
ALPHA WIRE 882209SL005 Electrical Cable Assembly Specifications:
- Conductors: 22 AWG TC
- Insulation: 0.010" PVC, semi
- Jacket: 0.032" PVC, slate color
- Jacket Wall Thickness: 0.032"
- Voltage Rating: 300 V
- Temperature Range: -20°C to 105°C
- Bend Radius: 10X cable diameter
- Pull Tension: 49 lbs maximum
- Capacitance: 23.5 pF/ft @1 kHz
- Conductor Resistance: 16.4 Ω/1000ft @20°C
- Construction: Cabled 9 components twisted at 4.8 twists/foot
- Certification: UL (CL2), CSA AWM 2464 80°C 300V, CE RoHS compliant
- Length Variants: 100 ft, 500 ft, 1000 ft reels

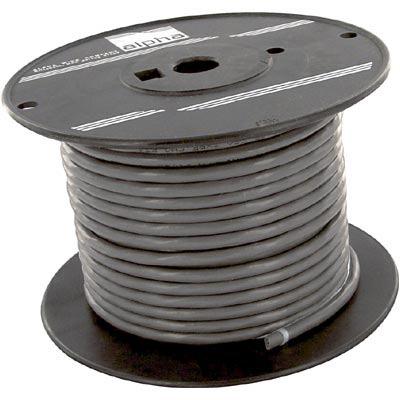

Buy the Buy Alpha Wire Cable Assembly Part Number 882209 Online
Purchase the Alpha Wire 882209 cable assembly today and enjoy a high-quality, UL and CSA-certified product built for industrial and control applications. Featuring 22 AWG thermoplastic conductors with PVC insulation rated for 300V and 105°C, this flexible cable offers excellent durability, a 0.032-inch PVC jacket, and a bend radius of 10 times the diameter. Its compliance with RoHS, Reach, and CE standards ensures environmental safety and regulatory adherence. Perfect for reliable electrical connections in demanding environments, order now for fast and secure online delivery.
Get Alpha Wire 882209 cable assembly today—designed for durability and reliable electrical performance in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 882209SL005?
You can click on the BUY or RFQ button to purchase 882209SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 882209SL005?
You can download the 882209SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 882209SL005?
ALPHA WIRE
