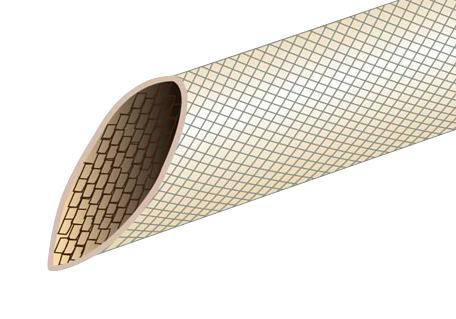

ALPHA WIRE AF1550NA015 Fiberglass Sleeve
This acrylic coated fiberglass sleeve offers excellent electrical insulation and mechanical protection for wires and cables. It meets military specifications MIL-I-3190/3 Grade C1 and NEMA TF-1 Type 6 standards. Designed to operate from -40°C to 155°C, it features a natural color, a wall thickness of 0.016 inches, and a diameter range from 0.325 to 0.347 inches. Its chemical and environmental properties comply with RoHS 2, REACH, and California Proposition 65, ensuring suitability for rigorous industrial applications with high temperature resistance.
ALPHA WIRE AF1550NA015 Fiberglass Sleeve Specifications:
- Material: Fiberglass braid coated with acrylic
- Color: Natural
- Minimum Diameter: 0.325 inches
- Maximum Diameter: 0.347 inches
- Minimum Wall Thickness: 0.016 inches
- Temperature Range: -40°C to 155°C
- Dielectric Strength: 2500 V minimum
- Volume Resistivity: 1x10^10 ohm-cm minimum
- Chemical Resistance: No corrosion after 16 hours at 0°C
- Mechanical Properties: Elongation 150% minimum, ASTM D638
- Environmental Compliance: RoHS 2, REACH, California Proposition 65
- Construction: Acrylic-coated fiberglass sleeve for electrical insulation and mechanical protection
Buy the Buy Alpha Wire Part Number AF1550NA015 Online
Secure your projects with the reliable Alpha Wire AF1550NA015 fiberglass sleeve, designed with acrylic coating for superior electrical insulation and mechanical protection. Operating from -40°C to 155°C, it complies with military and NEMA standards, ensuring durability and high-quality performance in harsh environments. Its natural color enhances visibility and ease of installation. Perfect for industrial, aerospace, and military applications, this sleeve is RoHS, REACH, and California Proposition 65 compliant, offering safety, environmental compliance, and excellent thermal resistance. Purchase online now for fast delivery and trusted performance.
Order your Alpha Wire AF1550NA015 acrylic coated fiberglass sleeve today and ensure high-performance electrical insulation with proven durability for demanding environments.
