ALPHA WIRE AZ181930WH005 Hookup Wire

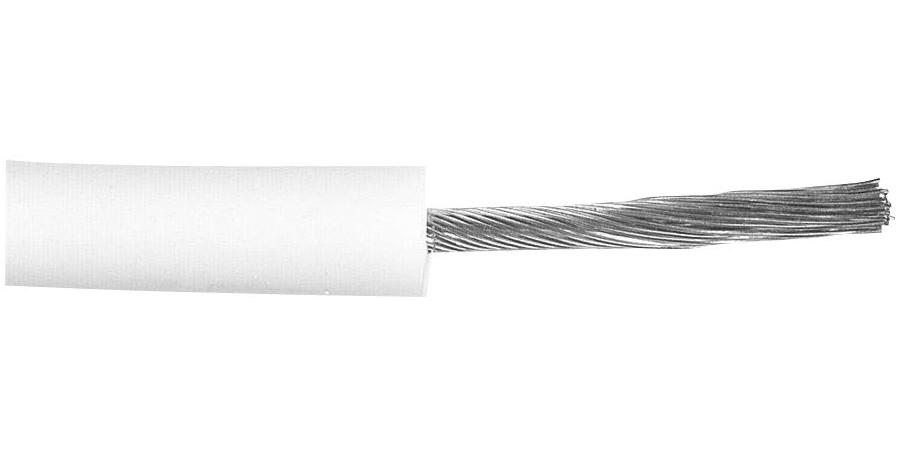

This is a flexible, high-temperature thermoplastic insulated hookup wire suitable for electrical applications requiring 600 V voltage rating and operating temperatures from -55°C to 150°C. Constructed with 18 (19/30) AWG TC conductors and 0.0115-inch wall ETFE insulation, the wire is available in multiple colors, including white, black, red, green, yellow, blue, brown, orange, slate, and violet. It complies with European RoHS 2, REACH, and California Proposition 65 standards, ensuring environmentally friendly and hazardous-free materials. It is ideal for industrial wiring, electronic devices, and control systems requiring resistant and reliable wiring solutions.
ALPHA WIRE AZ181930WH005 Hookup Wire Specifications:
- Conductor: 18 (19/30) AWG TC
- Insulation: ETFE, 0.0115-inch wall
- Voltage Rating: 600 V
- Temperature Range: -55°C to +150°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 14.9 Lbs Max
- Inductance: 0.04 pH/ft
- Conductor DCR: 6 Q/1000ft @20°C
- Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
- Applicable Standards: ISAE-AS22759/16, RoHS 2, REACH, California Proposition 65
- Spool sizes: 1000 FT, 500 FT, 100 FT, with dimensions varying
Buy the Buy AlphaWire Cable Part Number AZ181930WH005 Online
Enhance your electrical installations with AlphaWire hookup wire, featuring 18 AWG conductors and ETFE insulation for high-temperature resistance up to 150°C. This flexible wire is rated for 600 V applications and available in an array of vibrant colors to suit your project needs. Crafted according to strict European RoHS, REACH, and California Proposition 65 standards, it guarantees eco-friendly and hazard-free use. Perfect for industrial, electronic, and control applications, this reliable wire provides excellent mechanical and electrical performance, ensuring safety and durability in demanding environments.
Order your AlphaWire series AZ181930 hookup wire today and ensure your electrical projects benefit from durable, flexible, and environmentally compliant wiring.
Frequently Asked Questions
Where can I buy ALPHA WIRE AZ181930WH005?
You can click on the BUY or RFQ button to purchase AZ181930WH005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part AZ181930WH005?
You can download the AZ181930WH005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of AZ181930WH005?
ALPHA WIRE
