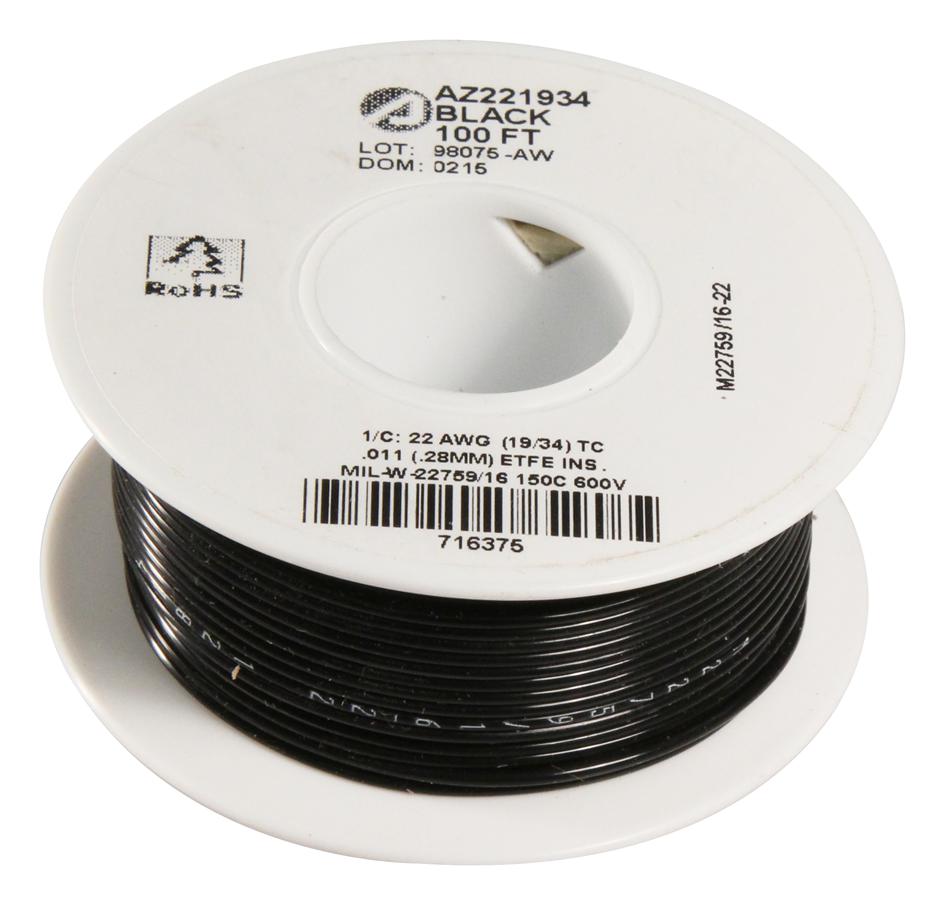

ALPHA WIRE AZ221934BK005 Control Wire
The AZ221934 BK005 hook-up wire is a 100-foot flexible control cable with stranded tinned copper conductor insulated with ETFE. Suitable for control cabinets, high-temperature ovens, machine tools, and off-road equipment, it resists wear, abrasion, oils, solvents, and chemicals, ensuring durability. Designed for reliable electrical performance, it features excellent uniformity, ease of handling, stripping, and termination. Ideal for wire wrap and industrial applications, this wire provides high temperature resistance up to 150°C, 600V voltage rating, and meets RoHS, REACH, and European safety standards, ensuring compliant, safe, and efficient electrical systems.
ALPHA WIRE AZ221934BK005 Control Wire Specifications:
- Conductor: Stranded tinned copper, 22 (19/34) AWG, resistance 15.1 Q/1000ft @20°C
- Insulation: ETFE, 0.011 inch wall thickness, temperature rated -55°C to 150°C
- Voltage Rating: 600 V
- Flexibility: Bend radius 10X cable diameter
- Maximum Pull Tension: 5.9 Lbs
- Physical Dimensions: 1000 ft spool - 6.5 x 2 x 1.9 inches, 500 ft spool - 3.5 x 3 x 1.125 inches, 100 ft spool - 2.75 x 1 x 1.125 inches
- Compliance: RoHS 2/3, REACH, and European Directive 2011/65/EU, SJ/T 11364-2014
- Operational Temperature: -55°C to 150°C
- Electrical Properties: Inductance 0.05 pH/ft
Buy the Buy AlphaWire Control Wire Part Number AZ221934BK005 Online
Purchase the AlphaWire AZ221934BK005 control wire online now for superior durability, high temperature resistance up to 150°C, and excellent flexibility. Ideal for control panels, machinery, and industrial environments, this 100-foot spool features stranded tinned copper conductors insulated with ETFE to resist oils, solvents, and chemicals. Its compliance with RoHS and REACH standards ensures safe handling and environmentally responsible use. Whether for wiring, machine tools, or control cabinets, buy online today and enjoy fast delivery, quality assurance, and reliable electrical performance tailored to demanding industrial needs.
Order your AlphaWire AZ221934BK005 control wire today and ensure reliable, high-temperature performance for industrial control applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE AZ221934BK005?
You can click on the BUY or RFQ button to purchase AZ221934BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part AZ221934BK005?
You can download the AZ221934BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of AZ221934BK005?
ALPHA WIRE
