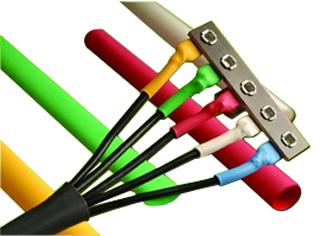

ALPHA WIRE F22138CL007 Heat Shrink Tubing
The F2213/8 CL007 is a clear heat shrink tubing made of cross-linked polyolefin, offering a 2:1 shrink ratio with excellent electrical insulation and mechanical protection. It features a minimum tensile strength of 1500 psi, dielectric strength of at least 500V/mil, and a shrink temperature of 90°C, with full recovery at 121°C. Operating within a temperature range of -55°C to 135°C, it is ideal for safety and industrial applications, providing reliable insulation and environmental resistance in harsh conditions, conforming to UL and CSA standards.
ALPHA WIRE F22138CL007 Heat Shrink Tubing Specifications:
- Material: Cross-linked polyolefin
- Color: Clear
- Shrink Ratio: 2:1
- Minimum Recovered ID: 0.187 inches
- Minimum Recovered Wall Thickness: 0.025 inches
- Full Recovery Temperature: 121°C
- Shrink Temperature: 90°C
- Operating Temperature Range: -55°C to 135°C
- Tensile Strength: 1500 psi, Min
- Dielectric Strength: 500 V/mil, Min
- Environmental Compliance: UL 224, CSA C22.2 No. 224
- RoHS & REACH Compliant: Yes
- Shelf Life: 5 Years
- Chemical & Physical Resistance: Water absorption minimal, no corrosion, withstands heat shock up to 250°C for 4 hrs
Buy the AlphaWire Series Heat Shrink Tubing: F22138CL007
Enhance your electrical insulation with AlphaWire F22138CL007, a clear cross-linked polyolefin heat shrink tubing. It provides a 2:1 shrink ratio, excellent tensile strength of 1500 psi, and dielectric strength over 500V/mil, ensuring superior electrical protection. Designed to operate from -55°C to 135°C, it offers environmental resistance, compliance with UL and CSA standards, and a shelf life of 5 years. Ideal for safety and industrial applications, it guarantees durability in harsh conditions, making it your trusted choice for reliable insulation and bundling.
Buy AlphaWire F22138CL007 now and experience unmatched reliability and performance in electrical insulation and protection.
