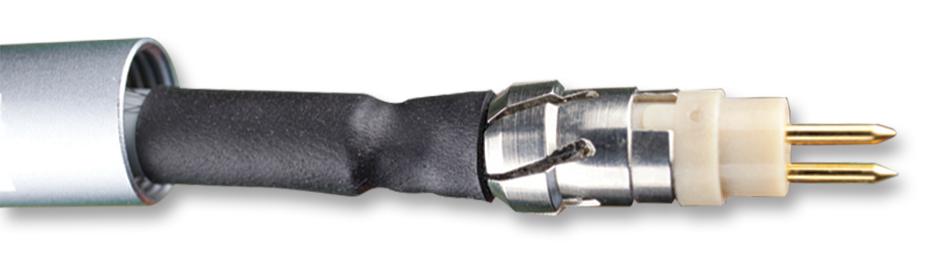

ALPHA WIRE F221L332BK002 Heat Shrink Tubing
This 4)T Type Heat Shrinkable T is made from LSZH Polyolefin, designed for electrical insulation with a 2:1 shrink ratio. It withstands temperatures from -40°C to 125°C, with full recovery at 110°C. It features UL 224 certification, complies with RoHS2 and REACH standards, and offers excellent mechanical and electrical properties, including tensile strength of 1500 psi and volume resistivity of 1x10^14 ohm-cm. Its flame-retardant, low smoke, and environmental safety features make it ideal for cable insulation and splicing in demanding industrial environments.
ALPHA WIRE F221L332BK002 Heat Shrink Tubing Specifications:
- Material: LSZH Polyolefin
- Shrink Ratio: Approximately 2:1
- Full Recovery Temperature: 110°C
- Minimum Shrink Temperature: 100°C
- Temperature Range: -40°C to 125°C
- Tensile Strength: 1500 psi, Min ASTM D638
- Elongation: 200%, Min ASTM D638
- Volume Resistivity: 1x10^14 ohm-cm, Min ASTM D876
- Water Absorption: 0.70%, Max ASTM D570
- Flammability: UL 224, VW-1
- Compliance: RoHS2, REACH, California Proposition 65
- Durability: Shelf Life of 25 years at 18 to 35°C
- Meet standards for heat resistance, chemical resistance, and low smoke emission
Buy the Alpha Wire F221L332BK002 – Reliable Heat Shrinkable Insulation for Industrial Applications
Purchase Alpha Wire F221L332BK002 heat shrink tubing online today and ensure reliable electrical insulation in demanding environments. This high-quality polyolefin tubing offers a 2:1 shrink ratio with excellent thermal stability, mechanical strength, and environmental safety. It’s UL 224 certified, RoHS compliant, and resistant to chemicals and high temperatures. Perfect for cable insulation, splicing, and protection in industrial applications. Buy now to experience ultimate durability, ease of installation, and long-term performance in your electrical projects.
Get Alpha Wire F221L332BK002 today—built for precision and long-lasting durability in electrical insulation.
