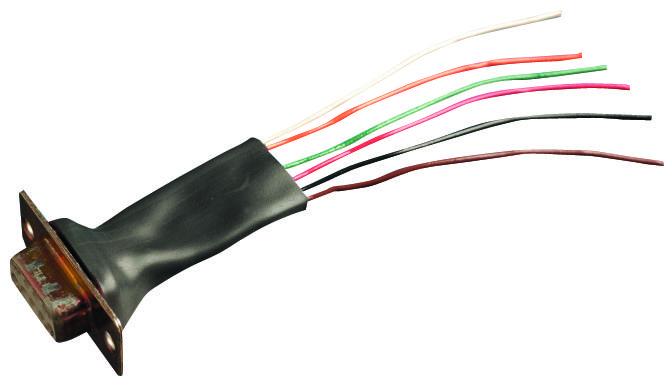

ALPHA WIRE F30038BK103 Flexible Heat Shrink Tubing
The F3003/8 BK103 is a black dual-wall heat shrink tubing made from semi-rigid XLPO material. It features a 2:1 shrink ratio and a minimum tensile strength of 1500 psi. The tubing provides a minimum dielectric strength of 500V/mil, with a minimum shrink temperature of 140°C and a full recovery temperature of 135°C. It operates effectively within a temperature range of -55°C to 125°C, making it suitable for safety and industrial applications.
ALPHA WIRE F30038BK103 Flexible Heat Shrink Tubing Specifications:
- Construction: T Type Dual Wall Heat Shrinkable Tubing
- Material: XLPO (Cross-Linked Polyolefin)
- Minimum Supplied ID: 0.375 inch
- Maximum Recovered ID: 0.135 inch
- Nominal Recovered Wall Thickness: 0.050 inch
- Nominal Recovered Melt Wall: 0.030 inch
- Colors: Black, Red
- Applicable Standards: UL Standard 224, AMS-DTL-23053/4, Class 1
- Temperature Range: -55°C to 125°C
- Shrink Ratio: Approximately 2.5:1
- Full Recovery Temperature: 135°C
- Minimum Shrink Temperature: 140°C
- Tensile Strength: 1500 psi, Min
- Dielectric Strength: 500 V/mil, Min
- Volume Resistivity: 1x10^16 ohm-cm, Min
- Water Absorption: 0.50%, Max
- Chemical Resistance: Passes fluid resistance, vacuum outgassing, and corrosion tests according to ASTM standards
- Environmental Compliance: RoHS 2011/65/EU and China RoHS
- Shelf Life: 3 Years at 18-35°C
Buy the Alpha Wire Series FIT: Flexible Heat Shrink Tubing: FIT-300-3/8
Purchase the Alpha Wire Series FIT-300-3/8 flexible heat shrink tubing online today and ensure reliable electrical insulation for industrial, safety, and cable protection applications. Made from high-quality XLPO material, it provides a 2:1 shrink ratio with excellent dielectric properties and a working temperature range of -55°C to 125°C. With certifications compliant to RoHS standards, this tubing guarantees durability, flexibility, and safety for your wiring needs. Buy now to get fast delivery and expert support from Alpha Wire.
Order your Alpha Wire Series FIT-300-3/8 flexible heat shrink tubing today and give your projects the dependable insulation quality they deserve.
Frequently Asked Questions
Where can I buy ALPHA WIRE F30038BK103?
You can click on the BUY or RFQ button to purchase F30038BK103 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part F30038BK103?
You can download the F30038BK103 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of F30038BK103?
ALPHA WIRE
