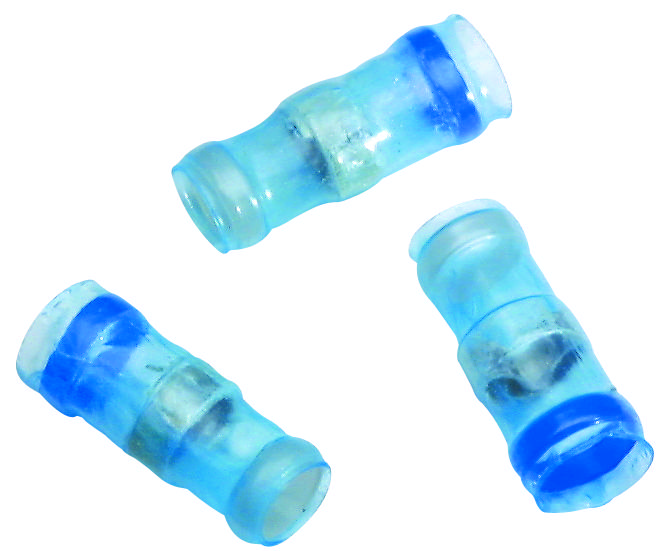

ALPHA WIRE FSLV26CL078 Connector Sleeve
The FSLV26 connector sleeve is made from radiation crosslinked, modified polyvinylidene fluoride, equipped with a meltable sealing ring and solder preform for secure cable connections. It operates within a temperature range of -55°C to +150°C, providing corrosion resistance and long-term stability. Suitable for aerospace, industrial, and high-reliability electrical applications, this sleeve ensures efficient insulation and protection. Designed to meet industry standards such as NAS1745, ANSI-J-STD-006, and ANSI-J-STD-004, the product guarantees high performance and durability during demanding conditions.
ALPHA WIRE FSLV26CL078 Connector Sleeve Specifications:
- Material: Radiation crosslinked, modified polyvinylidene fluoride
- Operating Temperature: -55°C to +150°C
- Color: Transparent blue
- Insulation Sleeve: Thermoplastically stabilized alloy — Sn63 Eutectic at 183°C
- Seal Ring: Meltable sealing ring
- Flux: Rol1 Type RMA Flux for tin or silver applications
- Standards: NAS1745, ANSI-J-STD-006, ANSI-J-STD-004
- Shelf Life: 25 years
- Water Resistance: Immersion resistant
- Package Options: 25 pcs., 100 pcs.
- Material Certification: Not RoHS compliant
Buy the Buy Alpha Wire FSLV26 Part Number FSLV26CL078 Online
Purchase the Alpha Wire FSLV26 connector sleeve online for high-quality insulation and secure cable termination. Made from radiation crosslinked polyvinylidene fluoride, it withstands temperatures from -55°C to +150°C, ensuring durability in industrial and aerospace applications. The sleeve features a meltable seal ring and solder preform, facilitating quick installation and long-lasting protection. Suitable for critical electrical systems, the product meets industry standards such as NAS1745 and ANSI-J-STD series, offering 25-year shelf life and immersion resistance, making it ideal for demanding environments and maintenance needs.
Get Alpha Wire FSLV26 connector sleeve today—designed for high-performance insulation and reliable cable connections in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE FSLV26CL078?
You can click on the BUY or RFQ button to purchase FSLV26CL078 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part FSLV26CL078?
You can download the FSLV26CL078 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of FSLV26CL078?
ALPHA WIRE
