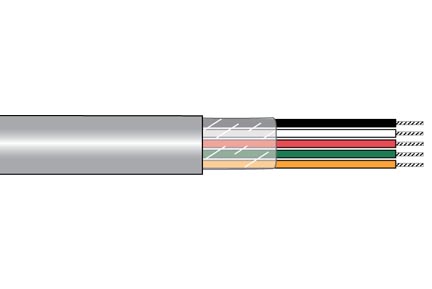

ALPHA WIRE M33502SL005 PVC Hookup Wire Cable
The ALPHA WIRE M33502 SL005 is a versatile hookup wire designed for a wide range of industrial and commercial applications. Constructed with 18 AWG stranded conductors and a durable PVC insulation, this cable provides reliable performance and protection. The slate jacket offers excellent abrasion resistance and a distinct visual identification. Compliant with RoHS directives, the M33502 SL005 is an environmentally responsible choice for connecting electronic devices and equipment. Its flexibility and robust construction make it suitable for use in various industries, including automation, consumer electronics, and appliances.
ALPHA WIRE M33502SL005 PVC Hookup Wire Cable Specifications:
- Conductor: 18 (16/30) AWG TC
- Insulation Wall Thickness: 0.016" Nom. PVC
- Color Code: Alpha Wire Color Code D (Black, Red)
- Cable Twists: 5.3 Twists/foot (min)
- Jacket Wall Thickness: 0.020" Nom. PVC
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N M33502 2C 18 AWG EXXXXX 75C CMG (UL) OR AWM 2509 80C 300V C(UL) 75C CMG CE ROHS * = Factory Code
- UL Style: AWM/STYLE 2509
- UL Voltage Rating: 80°C / 300 VRMS
- UL Temperature Rating: 75°C CMG
- CSA Type: C(UL) TYPE CMG
- CSA Temperature Rating: 75°C
- Flame Rating: FT4
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- RoHS Compliance: Complies with EU Directive 2011/65/EU and 2015/863/EU
- REACH Compliance: Does not contain SVHC in excess of 0.1% mass
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 25 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 33 pf/ft @1 kHz, Nominal Conductor to Conductor
- Characteristic Impedance: 65 Ω
- Inductance: 0.18 µH/ft, Nominal
- Conductor DCR: 7.1 Ω/1000ft @20°C, Nominal
- Diameter (In): 0.047
- Cable Diameter (0.208 Max.): 0.198
