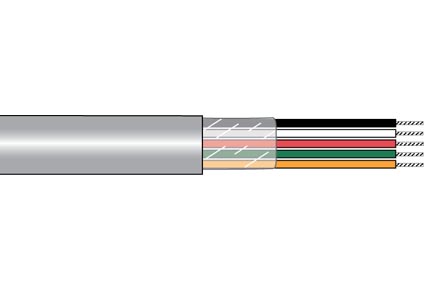

ALPHA WIRE M33502SLATE100 Shielded Data Cable
The ALPHA WIRE M33502-SLATE-100 is a shielded data cable designed for demanding industrial environments. Constructed with 22 AWG stranded conductors, PVC insulation, and an aluminum/mylar tape shield, this cable provides excellent signal transmission and protection against electromagnetic interference. It meets UL and CSA standards for temperature and flame resistance, making it suitable for a wide range of applications including data communication, control systems, and power transmission. The slate jacket offers durability and easy identification, while the RoHS compliance ensures environmental responsibility. Available in various lengths, this cable provides flexibility for different project requirements.
ALPHA WIRE M33502SLATE100 Shielded Data Cable Specifications:
- Conductor AWG: 22 (7/30) AWG TC
- Insulation Wall: 0.016" Wall, Nom. PVC
- Colors: Black, Red, White
- Twists per foot: 6.0 Twists/foot (min)
- Shield Material: Alum/Mylar Tape, 25% Overlap, Min.
- Foil Direction: Foil Facing In
- Drain Wire AWG: 24 (7/32) AWG TC
- Jacket Wall: 0.038" Wall, Nom. PVC
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N M39114 3C 22 AWG SHIELDED EXXXXX (UL) TYPE PLTC/ITC 105C SUN RES OR CMG 105C OR C(UL) CMG FT4 CE ROHS * = Factory Code
- Temperature Range: -20 to 105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 20 Lbs, Maximum
- Sunlight Resistance: Yes
- Voltage Rating: 300 VRMS
- Capacitance: 39 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 70 pf/ft @1 kHz, Nominal
- Inductance: 0.2 µH/ft, Nominal
- Conductor DCR: 16.3 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 15.9 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 12 x 10 x 5 Continuous length
- Packaging 500 FT: 12 x 4.5 x 3.5 Continuous length
- Packaging 100 FT: 6.5 x 4 x 2.5 Continuous length
