ALPHA WIRE MES20NC080 Cable Gland

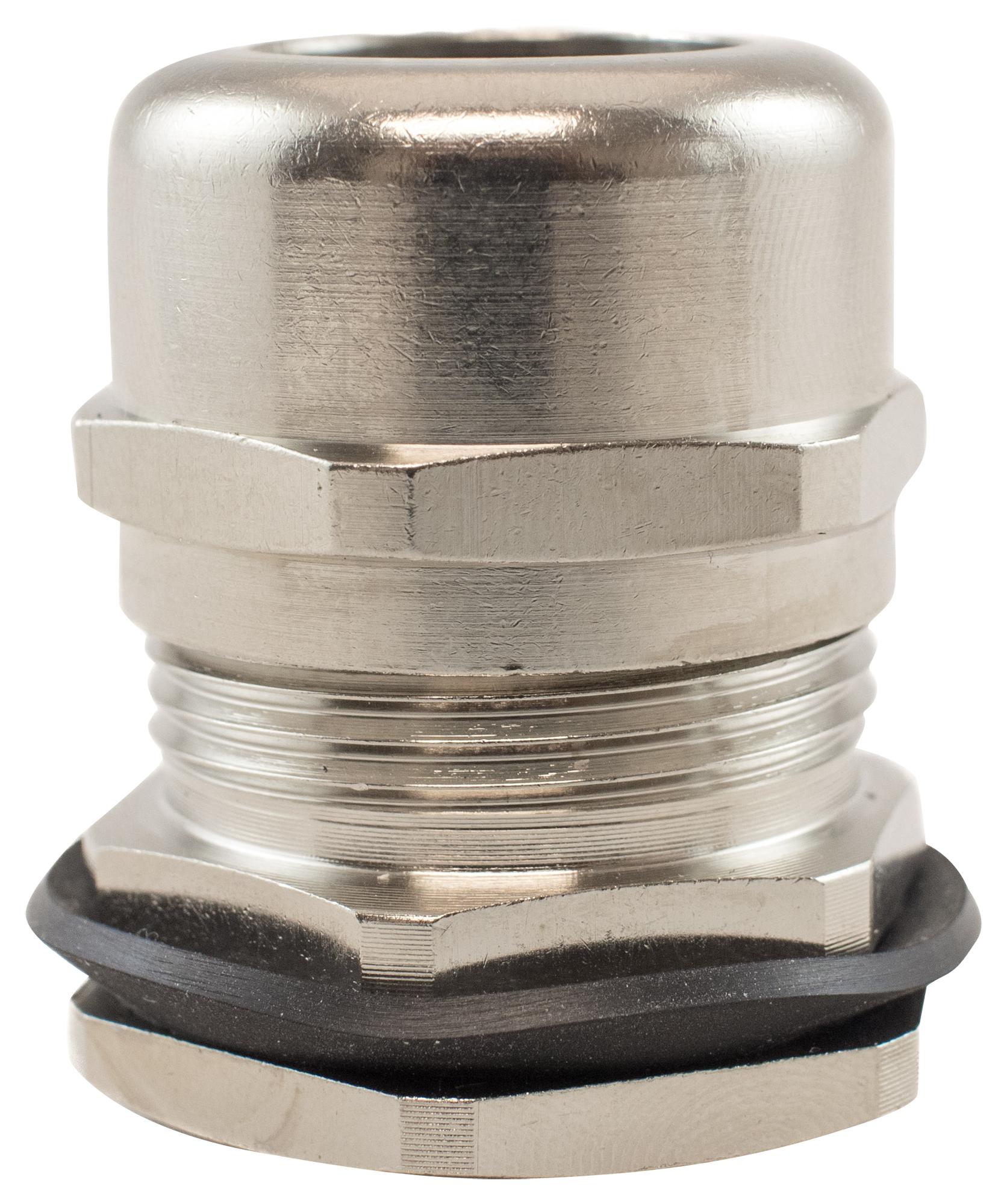

The MES20 NC080 Alpha Fit® Standard Dome Design Metric Cable Gland offers dependable cable strain relief and environmental sealing. Crafted from durable nickel-plated brass, this gland is dust-, dirt-, sand-resistant and watertight with an IP68 rating, providing excellent protection against water ingress and moisture. It features a locknut and gasket for secure installation, along with rubber seals to prevent water entry under pressure. Suitable for industrial automation, electrical infrastructure, and renewable energy sectors, it meets UL and CSA standards and operates effectively from -20°C to +100°C permanently, and -40°C to +150°C intermittently. Flammability rated UL94V-2.
ALPHA WIRE MES20NC080 Cable Gland Specifications:
- Material: Nickel-plated brass
- Protection Class: IP68 5 Bar, 30 min
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C permanently, -40°C to +150°C intermittently
- Seals: Rubber (NBR)
- Design: Dome, rugged construction
- Standards: UL Listed, CSA Certified
- Suitable for: Industrial automation, electrical infrastructure, renewable energy
- Dimensions: M-20x1.5 thread, locking range 6.0-12.0 mm, outer diameter 22 mm, max height 26.5 mm
Buy the Alpha Wire MES20NC080 – Reliable Cable Gland for Industrial Applications
Purchase the Alpha Wire MES20NC080 cable gland online to enhance your industrial project's durability and environmental protection. Crafted from high-quality nickel-plated brass, it offers a robust and reliable solution for cable strain relief and sealing. Rated IP68 for water and dust ingress protection, it ensures your electrical installations are resistant to moisture and contaminants. Suitable for automation, renewable energy, and electrical infrastructure, this UL and CSA listed gland operates efficiently from -20°C to +150°C, making it ideal for demanding environments. Get yours now for professional-grade performance.
Order your Alpha Wire MES20NC080 Series cable gland today and ensure secure, waterproof connections in your industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE MES20NC080?
You can click on the BUY or RFQ button to purchase MES20NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MES20NC080?
You can download the MES20NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MES20NC080?
ALPHA WIRE
