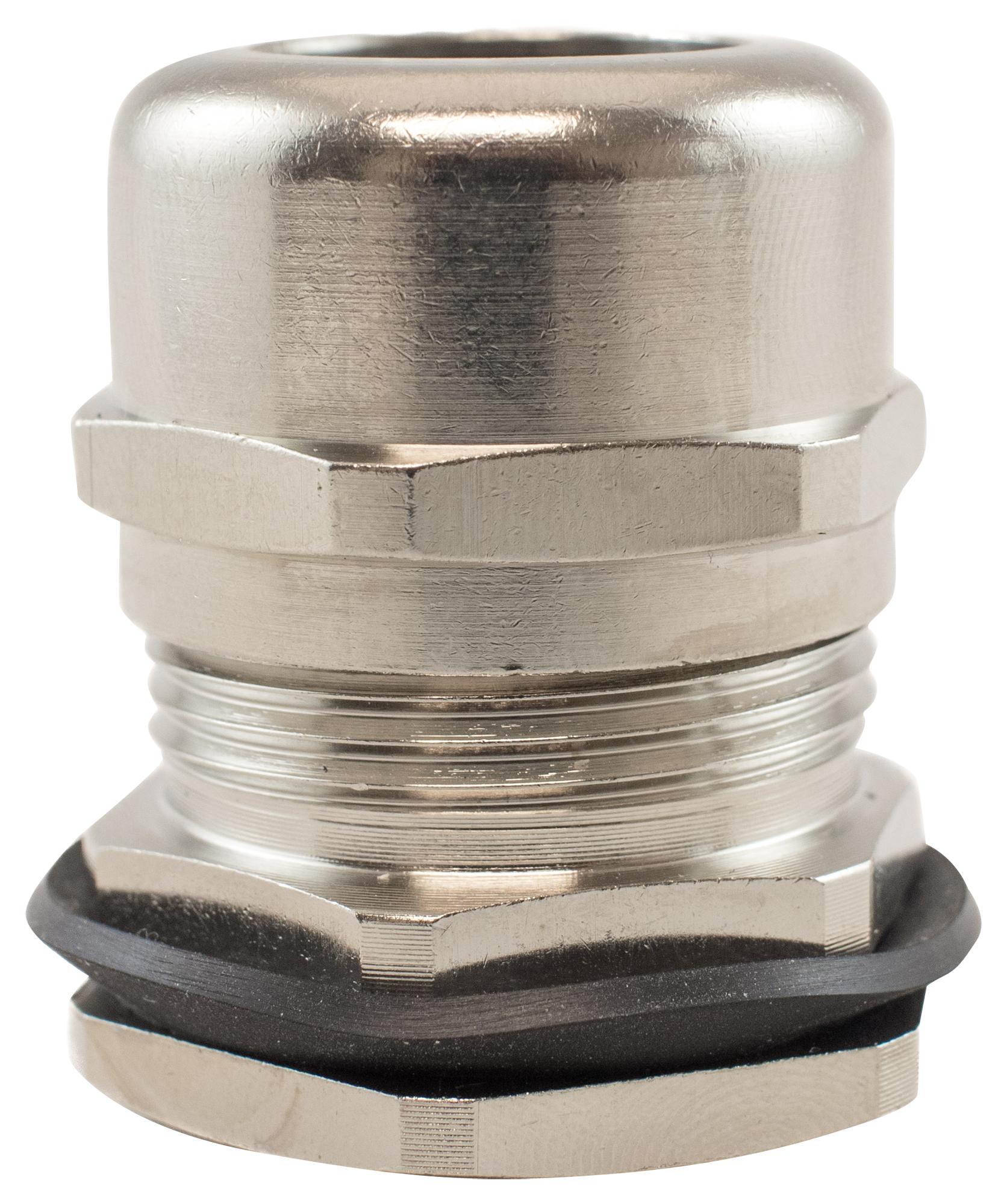

ALPHA WIRE MPG16NC080 Cable Gland
The MPG16 NC080 Alpha Fit® Standard Dome Design PG Cable Gland is a high-quality connector designed to provide effective cable strain relief and environmental protection. Constructed from high-strength nickel-plated brass, it features robust rubber seals to block dust, dirt, sand, and water ingress, with an IP68 rating (5 bar for 30 minutes) and IP66 protection. The gland is supplied complete with a locknut and gasket, making it a comprehensive solution for ensuring cable integrity in harsh conditions. It is rated for operation between -20°C and +100°C permanently, and -40°C to +150°C intermittently. The component is UL listed and CSA certified, suitable for use in industrial automation, electrical systems, and renewable energy applications.
ALPHA WIRE MPG16NC080 Cable Gland Specifications:
- Material: Nickel-plated brass Body and Cap
- Seals: CR (Chloroprene Rubber)
- Protection Class: IP68 5 Bar for 30 min, IP66
- Flammability: V2 UL94
- Temperature Rating: -20°C to +100°C (permanent), -40°C to +150°C (intermittent)
- Ingress Protection: IP68 (5 Bar, 30 min), IP66
- Certificate: UL Listed, CSA Certified
- Thread Range: 10.0-14.0 mm (PG16)
- Thread Length: 6.5 mm
- Outer Diameter: 24 mm
- Max Spanner Width: 26.5 mm
- Max Height: 28 mm
- Part Number: MPG16NC080
Buy the Buy Alpha Cable Gland Part Number MPG16NC080 Online
Order the Alpha Cable Gland MPG16NC080 today for superior cable strain relief and environmental sealing. Crafted from durable nickel-plated brass and rated IP68, it ensures long-lasting protection against dust, water, and harsh conditions. Perfect for industrial automation, outdoor electrical installations, and renewable energy projects, this gland features a UL listing and CSA certification. Its adjustable metal body provides reliable connection for cable sizes ranging from 10.0 to 14.0 mm. Enhance your installation with this high-quality, reliable, and easy-to-install industrial component available for quick online purchase and delivery.
Get Alpha Cable Gland MPG16NC080 today—designed for robust environmental resistance and reliable cable security in demanding industrial settings.
Frequently Asked Questions
Where can I buy ALPHA WIRE MPG16NC080?
You can click on the BUY or RFQ button to purchase MPG16NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MPG16NC080?
You can download the MPG16NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MPG16NC080?
ALPHA WIRE
