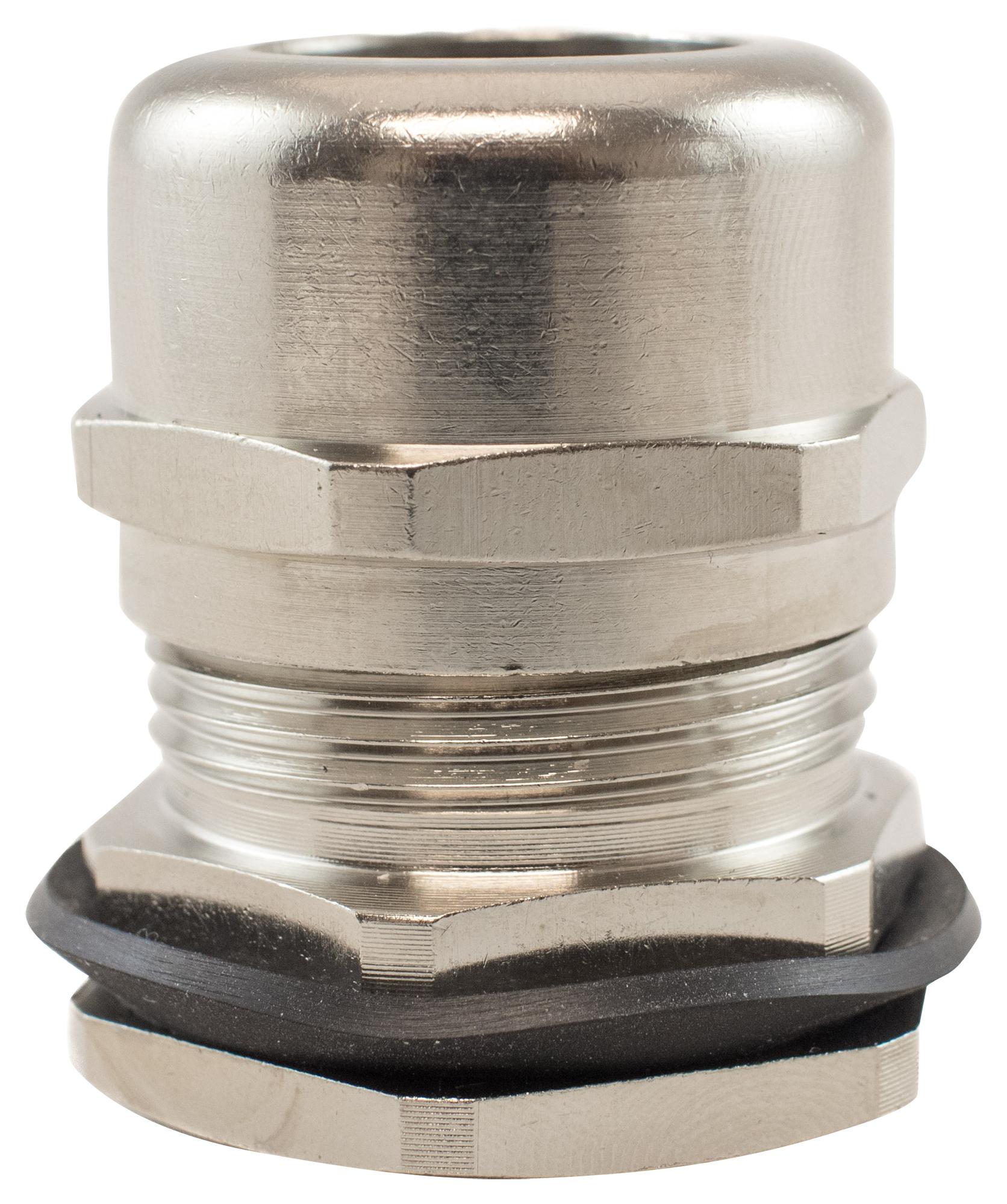

ALPHA WIRE MPG9NC080 Cable Gland
The MPG9 NC080 Alpha Fit® Standard Dome Design PG Cable Gland provides dependable cable strain relief and environmental protection. Constructed from durable nickel-plated brass with rubber seals, it offers resistance to dust, dirt, sand, and water, adhering to IP68 waterproof standards. The gland includes a locknut and gasket for secure installation, making it ideal for industrial automation, electrical systems, and renewable energy applications. Rated for UL94V-2 flammability, it operates within a temperature range of -20°C to +100°C permanently and -40°C to +150°C intermittently, meeting UL and CSA certifications for safety and reliability.
ALPHA WIRE MPG9NC080 Cable Gland Specifications:
- Material: Nickel-plated brass with rubber seals
- Protection Class: IP68, Waterproof up to 5 Bar for 30 min
- Flammability: UL94V-2
- Temperature Range: -20°C to +100°C permanently, -40°C to +150°C intermittently
- Approval: UL listed, CSA certified
- Thread Range: 4.0-8.0 mm (PG9)
- Outer Diameter: 17 mm (CAP), 17 mm (BODY)
- Max Clamping Range: 4.0-8.0 mm
- Thread Length: 6.0 mm
- Spanner Width: 0.669 inch (17 mm)
- Max Height: 23.5 mm
- Packaging: 10 glands per package
Buy the Alpha Wire MPG9NC080 – Reliable PG Cable Gland for Industrial Applications
Secure your industrial wiring installations with the Alpha Wire MPG9NC080 cable gland. Designed for durability, it features a nickel-plated brass body, rubber seals, and IP68 waterproof rating. Perfect for protecting electrical systems against dust, dirt, and water ingress, this UL-listed and CSA-certified gland ensures safety and reliability. Easy to install with included locknut and gasket, it withstands temperatures from -20°C to +150°C. Enhance your automation and electrical projects by ordering this high-quality cable gland online today for optimal performance and peace of mind.
Buy Alpha Wire MPG9NC080 cable gland now and experience unmatched reliability and environmental protection for your electrical connections.
Frequently Asked Questions
Where can I buy ALPHA WIRE MPG9NC080?
You can click on the BUY or RFQ button to purchase MPG9NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MPG9NC080?
You can download the MPG9NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MPG9NC080?
ALPHA WIRE
