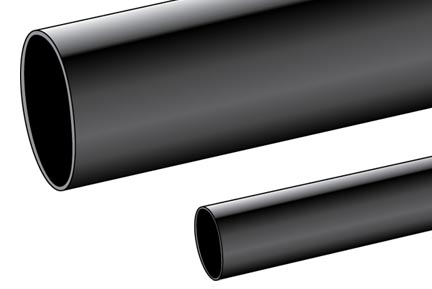

ALPHA WIRE P1056CL002 Multi-Purpose PVC Tubing
ALPHA WIRE PVC-105 multi-purpose PVC tubing is designed for flexible wire protection in a variety of industrial applications. It offers excellent resistance to heat, oil, and abrasion, making it ideal for wire harnesses, ground strap protection, and other demanding environments. Available in a wide range of sizes and put-ups, PVC-105 tubing meets industry standards including UL 224, CSA 198, and MIL-I-631D, and is RoHS compliant. Its versatility and durability make it a reliable choice for protecting critical wiring.
ALPHA WIRE P1056CL002 Multi-Purpose PVC Tubing Specifications:
- Operating Temperature: –20°C to 105°C
- Color Description: Black, Clear (Size 24 to 1-1/2 Inches), Black (Size 2 Inches to 2-1/2 Inches)
- Tensile Strength: 1800 psi (127 kg/cm²)
- Ultimate Elongation: 300%
- Specific Gravity: Clear 1.25, Black 1.35
- Flammability: Self-Extinguishing (UL VW-1)
- Corrosive Effect: Non-Corrosive
- Fungus Resistance: No Growth
- Water Absorption: 0.5%
- Dielectric Strength: 800V/mil (315 kV/cm)
- Volume Resistivity: 10¹¹ ohm-cm
- UL Standard: 224
- CSA Standard: 198
- MIL Standard: MIL-I-631D
- RoHS Compliant: Yes
- Standard Put-Up: 1000 Spools (Ft.)
Buy the P1056 CL002 ALPHA WIRE Multi-Purpose PVC Tubing | myMectronic
Secure your ALPHA WIRE PVC-105 tubing today with our easy and reliable online ordering process.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE P1056CL002?
You can click on the BUY or RFQ button to purchase P1056CL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part P1056CL002?
You can download the P1056CL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of P1056CL002?
ALPHA WIRE
