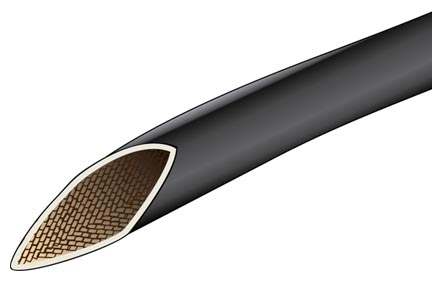

ALPHA WIRE PF13038BK005 PVC Fiberglass Sleeving
The ALPHA WIRE PF1303/8 sleeving is a durable and versatile solution for protecting wires and cables in demanding environments. Constructed with a fiberglass braid coated in PVC, it provides excellent abrasion resistance, chemical resistance, and insulation. It is commonly used in automotive, industrial, and appliance applications where reliable wire protection is essential. The sleeving meets UL 1441 standards and is compliant with RoHS directives, ensuring environmental responsibility. Its wide operating temperature range (-20°C to 130°C) allows for use in a variety of climates and conditions.
ALPHA WIRE PF13038BK005 PVC Fiberglass Sleeving Specifications:
- Tubing Type: PVC Coated Fiberglass Sleeving
- Tubing Material: Fiberglass Braid Coated with PVC
- Minimum ID(In): 0.375
- Maximum ID(In): 0.399
- Minimum Wall Thickness(In): 0.025
- Color(s): BLACK
- UL Standard: Standard 1441
- UL Voltage Rating: 600 VRMS
- UL Flammability Rating: VW-1
- Military Standard: MIL-I-3190/2 Class 130, Type B Category b
- NEMA Standard: NEMA TF-1 Grade A
- Temperature Range: -20 to 130°C
- Dielectric Strength: 5000 V, Min (ASTM D876)
- Volume Resistivity: 1x109ohm-cm, Min (ASTM D876)
- Corrosion Resistance: no corrosion (AMS-DTL-23053)
- Fungus Resistance: Pass (AMS-DTL-23053)
- Halogen Free: No
- Lead Free: Yes
