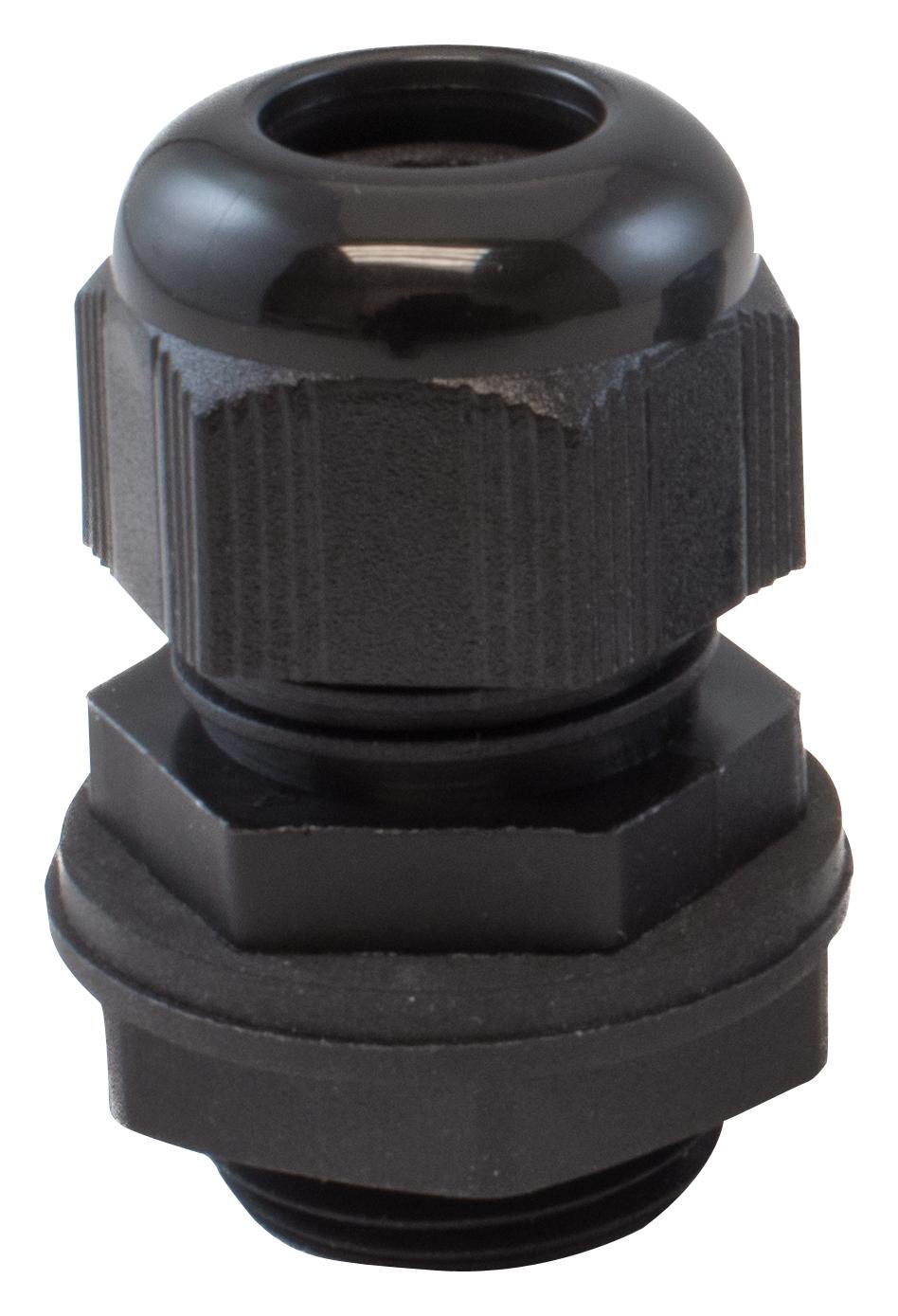

ALPHA WIRE PMC20BK080 Cable Gland
The PMC20 BK080 Alpha Fit® Standard Dome Design Metric Cable Gland offers reliable cable strain relief and environmental protection. Made from high-strength polyamide 6 in black, it is resistant to dust, dirt, sand, and water, meeting IP68 standards for watertightness, including 5 bar pressure for 30 minutes. The gland includes a locknut and gasket for a complete sealing solution, with robust rubber seals to prevent water ingress under pressure. It is rated for temperatures from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). The product is UL listed and CSA certified, suitable for use in industrial automation, electrical installations, and renewable energy applications.
ALPHA WIRE PMC20BK080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Black, RAL 9005
- Protection Class: IP 68 5 Bar, 30 min
- Flammability: V2 (UL94)
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Thread Type: Metric according to EN 60423
- Thread Size: M-20x1.5
- Thread Length: 20 mm
- Spanner Width: 24 mm
- Outer Diameter: 27 mm
- Clamping Range: 6.0-12.0 mm
- Product Code: PMC20
Buy the Buy Alpha Wire PMC20BK080 Part Number PMC20BK080 Online
Purchase the Alpha Fit® Cable Gland online today and ensure robust cable management and environmental protection in your electrical systems. Crafted from durable polyamide 6, this gland provides IP68 waterproof sealing, rated for -20°C to +100°C operation, withstands dust, dirt, and water ingress, making it ideal for industrial automation, electrical installations, and renewable projects. Its M-20x1.5 thread offers easy installation, and UL listing with CSA certification guarantees safety and quality. Buy now to secure reliable, long-lasting sealing with easy online ordering and fast delivery.
Buy Alpha Wire PMC20BK080 now and experience unmatched reliability and performance in electrical sealing and industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE PMC20BK080?
You can click on the BUY or RFQ button to purchase PMC20BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PMC20BK080?
You can download the PMC20BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PMC20BK080?
ALPHA WIRE
