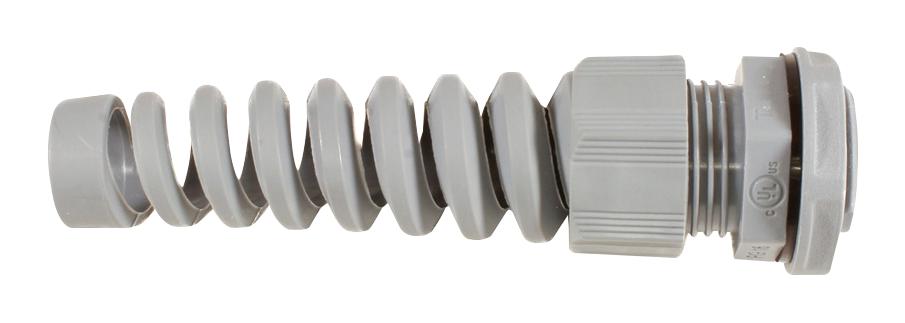

ALPHA WIRE PMS16SL080 Cable Gland
The PMS16 SL080 Fit Flexible Spiral Design Metric Cable Gland provides reliable cable strain relief and environmental protection for industrial automation, electrical, and renewable energy applications. Made from durable polyamide 6 in RAL 7001 gray, it includes rubber seals rated IP68 (5 bar for 30 minutes) and IP66, ensuring water ingress prevention. This UL 514 listed and CSA C22 certified gland features a flammability rating of UL94V-2. Suitable for temperatures from -20°C to +100°C permanently and -30°C to +150°C intermittently, it offers high performance in harsh environments.
ALPHA WIRE PMS16SL080 Cable Gland Specifications:
- Material: PA 6 (Polyamide 6)
- Color: Gray, RAL 7001
- Protection Class: IP 68, IP 66
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C permanently, -30°C to +150°C intermittently
- Thread Type: Metric according to EN 60423
- Clamping Range: 3.0-65 mm (for M-12x1.5), 5.0-10.0 mm (for M-16x1.5), 10.0-14.0 mm (for M-20x1.5), 13.0-18.0 mm (for M-25x1.5)
- Thread Length: 8-10 mm depending on size
- Outer Diameter: 12-25 mm depending on size
- Max Height: 57.0-117.5 mm depending on size
- Certifications: UL 514, CSA C22.2
- Operating Temperature Range: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
Buy the Alpha PMS16SL080 – Reliable Cable Gland for Industrial Applications
Purchase the Alpha Series PMS16SL080 cable gland online today to enjoy high-quality cable strain relief and environmental sealing for industrial environments. Crafted from durable polyamide 6, it provides robust protection against water ingress with IP68/IP66 ratings. Certified UL and CSA, rated UL94V-2 for flammability, and suitable for a wide temperature range from -20°C to +150°C, this gland is ideal for automation, electrical installations, and renewable energy systems. Ensure your projects meet industry standards with this reliable component, available for quick online ordering.
Order your Alpha Series PMS16SL080 cable gland today and ensure reliable environmental protection and secure cable management in your projects.
