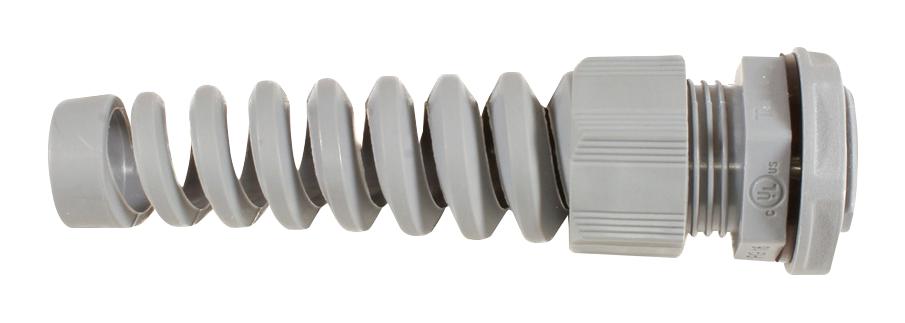

ALPHA WIRE PMS25SL080 Flexible Spiral Cable Gland
The PMS25 SL080 Fit® Flexible Spiral Design Metric Cable Gland is a high-quality solution designed for secure cable strain relief and environmental protection. Constructed from high-strength polyamide 6 in a slate (RAL 7001) color, it features a flexible spiral design that accommodates various cable sizes. The gland includes a locknut and gasket for complete sealing and strain relief. It offers robust rubber seals to prevent water ingress under pressure, with an IP68 rating (5 bar for 30 minutes) and IP66 protection. The product is UL listed (514), CSA certified (C22), and rated for temperatures from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). Flammability is rated UL94V-2, making it suitable for industrial automation, electrical applications, and renewable energy sectors.
ALPHA WIRE PMS25SL080 Flexible Spiral Cable Gland Specifications:
- Material: PA 6 (Polyamide 6)
- Color: Gray, RAL 7001
- Protection Class: IP 68, IP 66
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: Metric according to EN 60423
- Thread Size: M-25x1.5
- Clamping Range: 13,0-18,0 mm
- Thread Length: 10 mm
- Outer SW: 33 mm
- Max. Height: 117,5 mm
- Supports cable diameters from 13 mm to 18 mm
- Includes locknut and gasket for sealing
- UL Listed (514), CSA Certified (C22.2)
- Weather-resistant with rubber seals for water ingress prevention
- Suitable for industrial automation, electrical, and renewable energy applications
Buy the Buy Alpha Wire PMS25 Part Number PMS25SL080 Online
Order the Alpha PMS25SL080 Flexible Spiral Cable Gland online today to ensure secure cable management with IP68/IP66 protection, UL and CSA certifications, and superior temperature resistance. Perfect for industrial automation, electrical installations, and renewable energy projects, this high-quality gland provides excellent strain relief and environmental sealing. Its flexible spiral design accommodates a variety of cable sizes, ensuring compatibility and ease of installation. With robust rubber seals and certified safety ratings, buy online now to enhance your equipment protection and operational reliability.
Buy Alpha Wire PMS25SL080 now and experience unmatched reliability, environmental sealing, and high-temperature performance for industrial and electrical applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE PMS25SL080?
You can click on the BUY or RFQ button to purchase PMS25SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PMS25SL080?
You can download the PMS25SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PMS25SL080?
ALPHA WIRE
