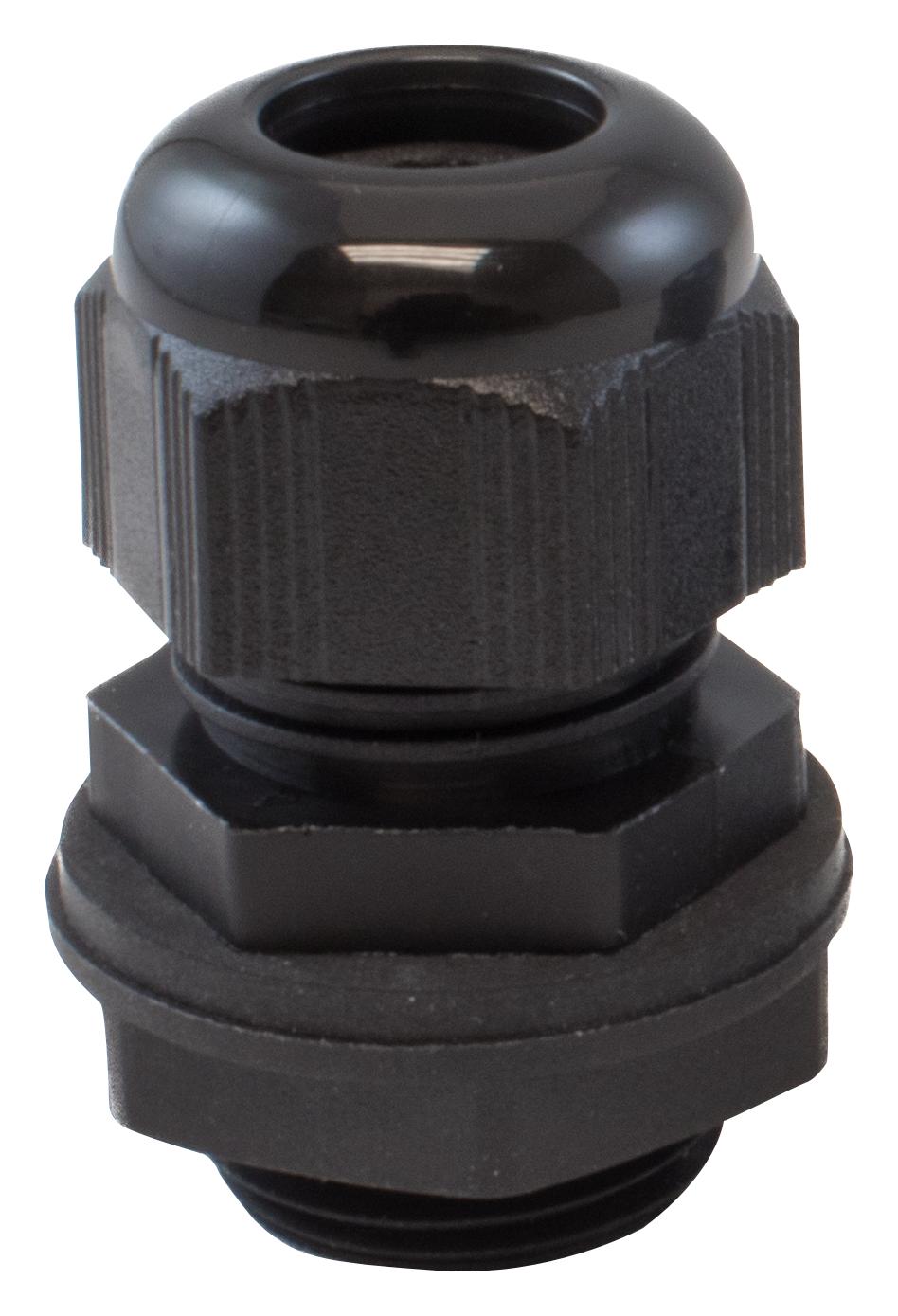

ALPHA WIRE PNC1BK080 Cable Gland
The PNC1 BK080 Alpha Fit® Standard Dome Design NPT Cable Gland provides reliable cable strain relief and environmental protection. Constructed from high-strength polyamide 6 in black, it features robust rubber seals to prevent water ingress and withstand water pressure, meeting IP68 (5 bar for 30 minutes) and IP66 standards. The gland is UL listed and CSA certified, with flammability rated to UL94V-2. It operates effectively within temperatures from -20°C to +100°C permanently and -30°C to +150°C intermittently. Packaged with a locknut and gasket, it is suitable for use in industries such as renewable energy, industrial automation, and electrical equipment.
ALPHA WIRE PNC1BK080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6) in black, rubber seals (CR)
- Protection Class: IP68 5 Bar, 30 min; IP66
- Flammability: UL94V-2
- Temperature Range: -20°C to +100°C permanently, -30°C to +150°C intermittently
- Thread Type: NPT according to ANSI B1.20.1
- Approvals: UL UL 514, CSA CSA C22.2
- Clamping Range: 5.0-10.0 mm (NPT-3/8"), 10.0-14.0 mm (NPT-1/2"), 13.0-18.0 mm (NPT-3/4"), 18.0-25.0 mm (NPT-1")
- Connection Dimensions: Thread length varies with size, sealing and outer diameter as specified
- Packaging: 10 glands per package
Buy the Buy Alpha Wire Cable Gland Part Number PNC1BK080 Online
Get the Alpha Wire PNC1BK080 high-strength polyamide 6 cable gland online now. Designed for robust environmental sealing, it ensures reliable cable strain relief and water resistance. Certified with UL and CSA approvals, it withstands temperatures from -20°C to +100°C permanently, making it ideal for demanding industrial and renewable energy applications. With a standard package of 10 units, this NPT threaded gland provides excellent durability, flame resistance, and ease of installation, delivering quality and dependable performance for electrical projects and automation systems.
Order your Alpha Wire PNC1BK080 durable NPT cable gland today and ensure reliable cable management in industrial, automation, and electrical projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNC1BK080?
You can click on the BUY or RFQ button to purchase PNC1BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNC1BK080?
You can download the PNC1BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNC1BK080?
ALPHA WIRE
