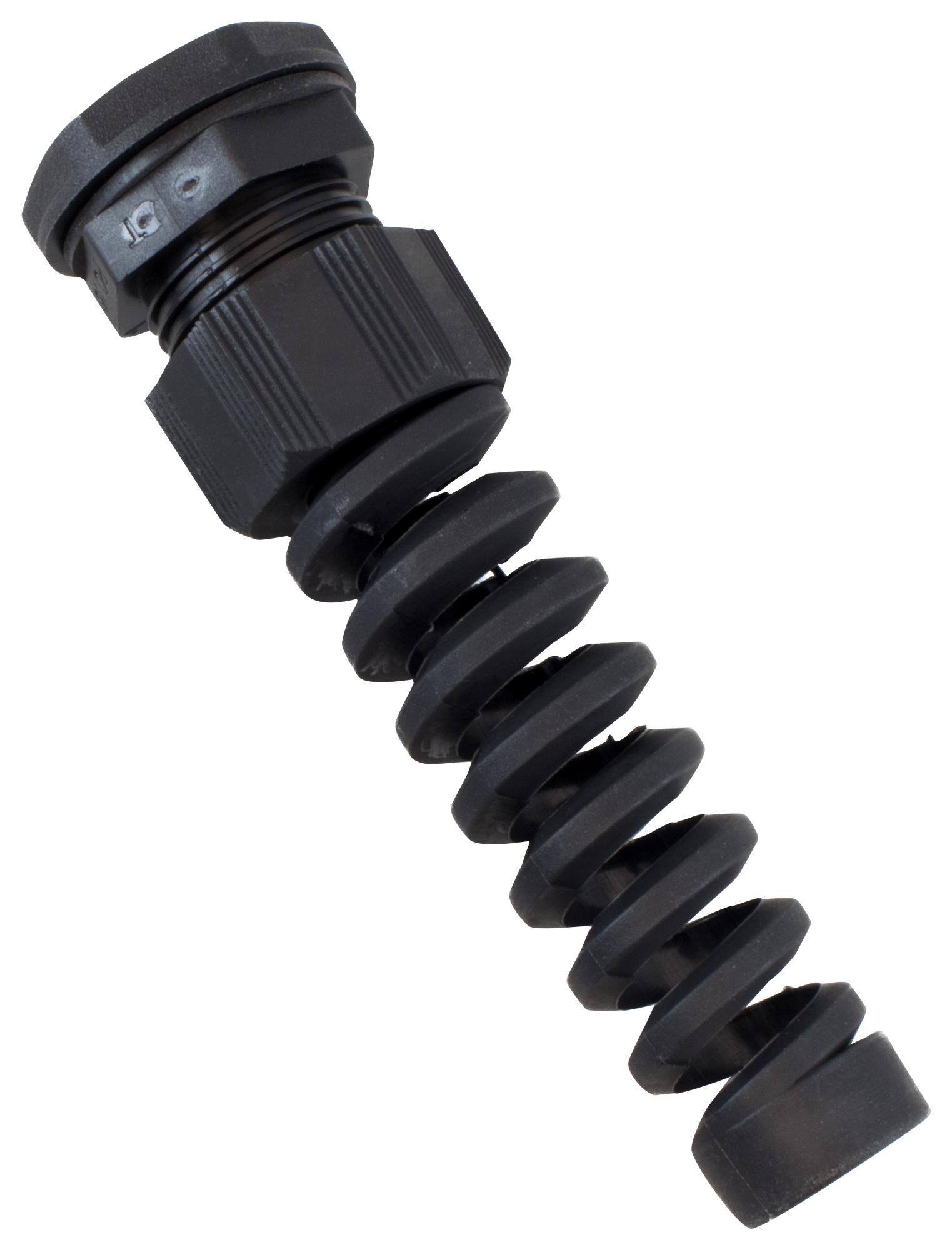

Alpha Wire PNS38BK080 Cable Gland
The PNS3/8 BK080 Alpha Fit® Flexible Spiral Design NPT Cable Gland offers reliable cable strain relief and protection against environmental factors. Crafted from high-strength polyamide 6 in black, it features robust rubber seals to prevent water ingress and withstand water pressure, rated at IP68 (5 bar, 30 minutes) and IP66. The gland includes a locknut and gasket for a complete sealing solution. It is suitable for use in industries like renewable energy, industrial automation, and electrical equipment. The component is UL listed (514), CSA certified (C22.2), and flammability rated UL94V-2. Its temperature range is from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent).
Alpha Wire PNS38BK080 Cable Gland Specifications:
- Material: Polyamide 6 (Body and Cap)
- Seals: CR (Chloroprene Rubber)
- Color: Gray, RAL 7001
- Protection Class: IP68 5 Bar, 30 min; IP66
- Flammability: UL94V-2
- Temperature Range: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Types: NPT-3/8, NPT-1/2, NPT-3/4
- Clamping Range: 5.0-10.0 mm for 3/8"; 6.0-12.0 mm for 1/2"; 13.0-18.0 mm for 3/4"
- Thread Length: 15.0 mm
- Outer Diameter: 17.14 mm (3/8"), 21.34 mm (1/2"), 26.67 mm (3/4")
- Outer Width Spanner: 22 mm (3/8"), 24 mm (1/2"), 33 mm (3/4")
- Max Height: 81.5 mm (3/8"), 93.3 mm (1/2"), 117.9 mm (3/4")
Buy the Buy Alpha Wire PNS3/8 BK080 Part Number PNS38BK080 Online
Order the Alpha Wire PNS3/8 BK080 cable gland online today to experience durable, high-performance cable sealing solutions. Made from high-strength polyamide 6 with rubber seals, it ensures IP68/IP66 protection, UL and CSA certifications, and temperature tolerance from -20°C to +150°C. Its spiral design provides flexible strain relief suitable for industrial automation, renewable energy, and electrical installations. With a complete sealing system including a locknut and gasket, this gland guarantees long-lasting, reliable performance in demanding conditions. Purchase now and secure your cables effectively.
Get Alpha Wire PNS3/8 BK080 today—crafted for reliable cable sealing and environmental protection in industrial environments.
Frequently Asked Questions
Where can I buy Alpha Wire PNS38BK080?
You can click on the BUY or RFQ button to purchase PNS38BK080 from an authorized Alpha Wire distributor.
How do I troubleshoot issues or seek technical support for part PNS38BK080?
You can download the PNS38BK080 datasheet or visit the Alpha Wire website for support.
Who is the manufacturer of PNS38BK080?
Alpha Wire
