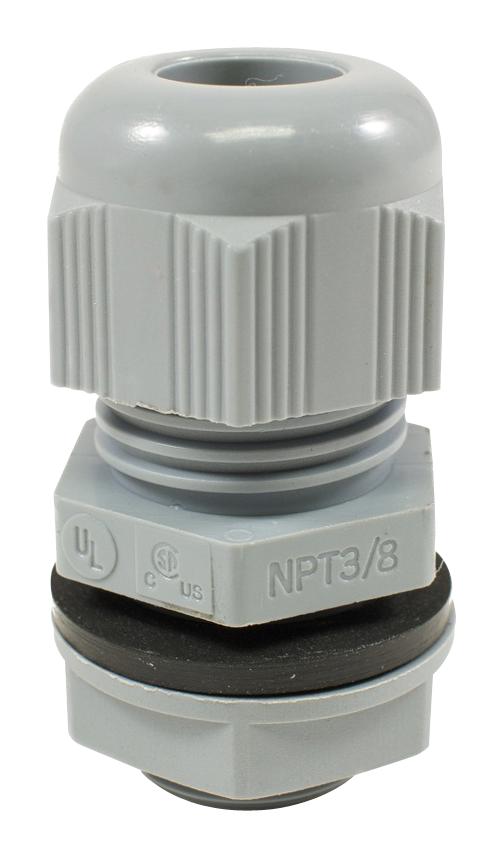

ALPHA WIRE PPC16SL080 Cable Gland
The PPC16 SL080 Fit® Standard Dome Design PG Cable Gland offers premium cable strain relief and environmental protection. Resistant to dust, dirt, sand, and water with an IP68 rating, it ensures durability in harsh conditions. The kit includes a locknut and a gasket for a complete installation. Made from high-strength polyamide 6 in a slate (RAL 7001) color, it features robust rubber seals to prevent water ingress under pressure. The cable gland is rated for protection class IP68 (5 bar, 30 minutes) and IP66, with flammability rated UL94V-2. It operates effectively within temperatures from -20°C to +100°C permanently, and -30°C to +150°C intermittently. Certified UL 514 and CSA C22, it is suitable for industrial automation, electrical, and renewable energy applications.
ALPHA WIRE PPC16SL080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Slate (RAL 7001)
- Protection Class: IP68 (5 bar, 30 min), IP66
- Flammability: UL94V-2
- Temperature Range: -20°C to +100°C permanently, -30°C to +150°C intermittently
- Thread Type: PG according to DIN 40430
- Rated Voltage: Not specified
- Seal Material: Rubber
- Includes: Locknut and gasket for complete installation
- Approvals: UL 514, CSA C22.2
- Application: Industrial automation, electrical, renewable energy
Buy the Alpha Series PPC16 Cable Gland: PPC16SL080
Enhance your electrical and automation projects with the durable and reliable PPC16SL080 cable gland. Featuring an IP68 rating, high-strength polyamide body, and rubber seals, it provides excellent protection against dust, dirt, sand, and water. Certified UL 514 and CSA C22.2, this gland is suitable for demanding industrial applications, renewable energy, and outdoor installations. Easy to install with included locknut and gasket, it operates seamlessly across a wide temperature range. Order online today for trusted quality and quick delivery.
Order your Alpha Series PPC16SL080 cable gland today and ensure reliable environmental protection for your electrical installations in harsh conditions.
Frequently Asked Questions
Where can I buy ALPHA WIRE PPC16SL080?
You can click on the BUY or RFQ button to purchase PPC16SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PPC16SL080?
You can download the PPC16SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PPC16SL080?
ALPHA WIRE
