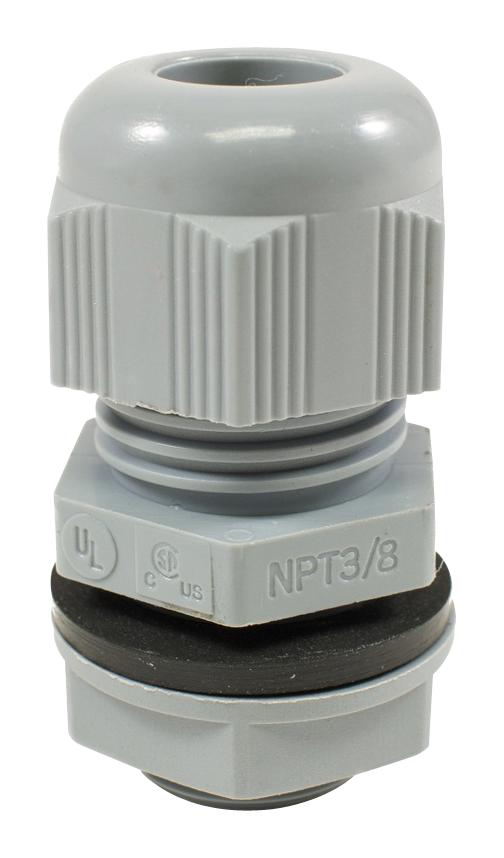

ALPHA WIRE PPC9SL080 Cable Gland
The PPC9 SL080 Alpha Fit® Standard Dome Design PG Cable Gland offers superior cable strain relief and environmental protection. Constructed with a high-strength polyamide 6 body in slate color (RAL 7001), it features durable rubber seals that provide resistance against water ingress, ensuring protection up to IP68 (5 bar for 30 minutes) and IP66 classifications. The gland is supplied complete with a locknut and gasket, making it suitable for demanding applications in renewable energy, industrial automation, and electrical equipment. Rated for temperatures from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent), UL listed 514, CSA certified, and flammability rated UL94V-2, this provides reliable environmental sealing and mechanical durability.
ALPHA WIRE PPC9SL080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Slate (RAL 7001)
- Protection Class: IP68 (5 bar for 30 mins), IP66
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: PG according to DIN 40430
- Certifications: UL Listed 514, CSA C22.2
- Dimensions: Clamping Range 40-80 mm, Thread Length 15 mm, Outer Diameter 59.8 mm, Spanner Width 19 mm, Max. Height 26.5 mm
- Includes: Locknut and gasket
- Protection: Water ingress resistant, suitable for demanding industrial environments
Buy the Alpha Cable Gland PPC9SL080 – Reliable Sealing for Industrial Applications
Order the Alpha Cable Gland PPC9SL080 online today for secure cable management with IP68/IP66 protection, high durability, and certification for industrial and outdoor use. Featuring a resilient polyamide 6 body, rubber seals, and comprehensive environmental sealing, this gland is ideal for automation, renewable energy, and electrical installations. Easy to install with included locknut and gasket, it ensures reliable performance across temperature ranges from -20°C to +150°C, rated UL and CSA, and meets flammability standards UL94V-2. Purchase now for dependable protection in critical applications.
Get Alpha Cable Gland PPC9SL080 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE PPC9SL080?
You can click on the BUY or RFQ button to purchase PPC9SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PPC9SL080?
You can download the PPC9SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PPC9SL080?
ALPHA WIRE
