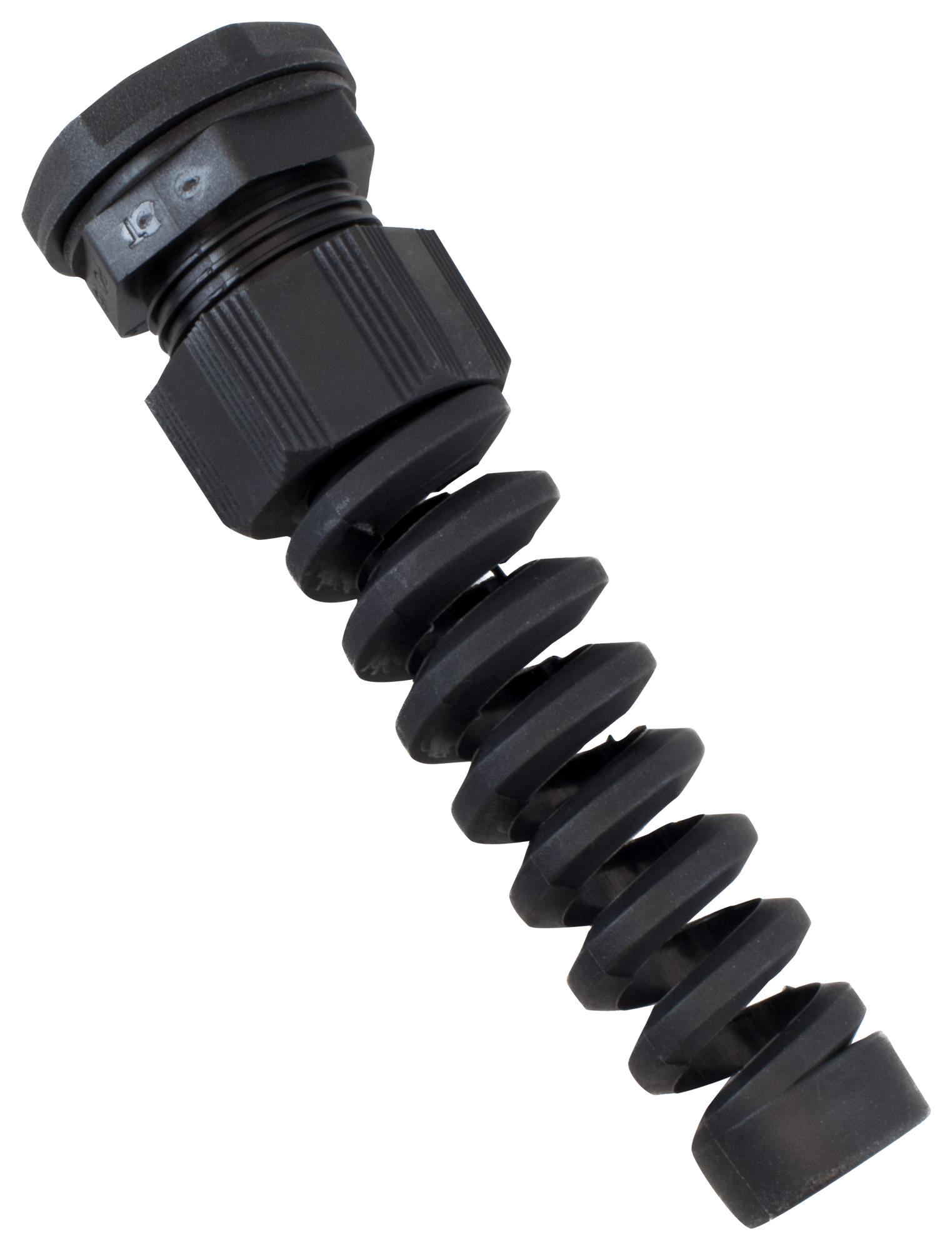

ALPHA WIRE PPS11BK080 Cable Gland
The PPS11 BK080 Alpha Fit® Flexible Spiral Design PG Cable Gland offers reliable cable strain relief and environmental protection. Made from high-strength polyamide 6 in black, it features robust rubber seals to guard against water ingress and environmental contaminants. The gland is rated IP68, providing protection against dust, dirt, sand, and water pressure for up to 30 minutes at 5 bar. It is supplied with a locknut and gasket for a complete sealing solution. Suitable for industrial automation, electrical systems, and renewable energy applications, it is UL listed and CSA certified. The temperature range is from -20°C to +100°C permanently, and -30°C to +150°C intermittently.
ALPHA WIRE PPS11BK080 Cable Gland Specifications:
- Material: Polyamide 6
- Color: Black (RAL 7001)
- Protection Class: IP68, rated for 5 bar water pressure for 30 minutes
- Temperature Range: Permanent -20°C to +100°C, intermittent -30°C to +150°C
- Thread Types: PG 11
- Thread Length: 80 mm
- Outer Diameter: 15 mm
- Spanner Width: 15 mm
- Certifications: UL Listed, CSA Certified
- Includes: Locknut and gasket for sealing
- Suitable for industrial automation, electrical systems, renewable energy
- Pack Quantity: 10 glands per package
Buy the Alpha Series PG Cable Gland: PPS11BK080
Purchase the Alpha Series PPS11BK080 cable gland online today to ensure secure, weatherproof connections in industrial automation, electrical, and renewable energy projects. Featuring high-strength polyamide 6 construction and IP68 protection, it offers superior sealing against dust, dirt, and water ingress, rated for pressure up to 5 bar for 30 minutes. Easy to install with included locknut and gasket, this UL and CSA certified gland guarantees durability and safety, making it ideal for demanding environments requiring high performance and reliability.
Buy Alpha Series PPS11BK080 cable gland now and experience unmatched reliability and environmental protection for industrial and automation applications.
