ALPHA WIRE TFT20018NA001 High-Temperature PTFE Cable
The TFT-200-18 is a natural-colored, non-shrinkable PTFE T type cable with a wall thickness ranging from 0.040 to 0.046 inches. It complies with ASTM D3295-81a Class B and AMS 3655 standards, suitable for high-temperature environments with a temperature range of -75°C to 260°C. Its electrical properties include a dielectric strength of at least 1400 V/mil and a volume resistivity of 1x10^18 ohm-cm. The material offers excellent chemical resistance, low water absorption (0.01%), and is lead-free, making it ideal for electrical and electronic applications requiring high purity and resistance to harsh conditions.
ALPHA WIRE TFT20018NA001 High-Temperature PTFE Cable Specifications:
- Color: Natural
- Wall Thickness: 0.040 to 0.046 inches
- Temperature Range: -75°C to 260°C
- Dielectric Strength: 1400 V/mil, Min ASTM D876
- Volume Resistivity: 1x10^18 ohm-cm, Min ASTM D876
- Water Absorption: 0.01% Max ASTM D570
- Tensile Strength: 3000 psi, Min ASTM D638
- Elongation: 200%, Min ASTM D638
- Specific Gravity: 2.18, Max ASTM D792
- External Compliance: EU RoHS 2, REACH, California Proposition 65
- Lead-Free: Yes
- Certification: ASTM D3295-81a, AMS 3655

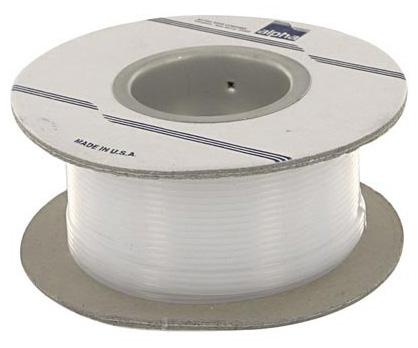

Buy the Buy Alpha Wire T Type Cable Part Number TFT-200-18 Online
Order the Alpha Wire TFT-200-18 online today to enjoy superior high-temperature resistance, excellent dielectric properties, and chemical durability. This PTFE cable is perfect for electrical and electronic systems that operate under extreme conditions. Its natural color and non-shrinkable design ensure secure installation, while compliance with RoHS, REACH, and California Proposition 65 standards guarantees environmentally safe operation. Purchase now to benefit from fast shipping, guaranteed authenticity, and reliable performance in your critical projects.
Buy Alpha Wire TFT-200-18 now and experience unmatched reliability and high-temperature performance for demanding electrical applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE TFT20018NA001?
You can click on the BUY or RFQ button to purchase TFT20018NA001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part TFT20018NA001?
You can download the TFT20018NA001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of TFT20018NA001?
ALPHA WIRE
