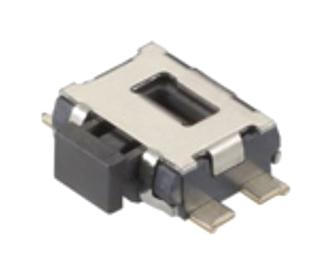

ALPS ALPINE SKSCLAE010 Side Push Switch
The SKSCLAE010 is a low-profile, surface mount side push type switch designed for compact applications with a slim profile of 1.25mm. It offers durable operation with an initial contact resistance of 1.00mΩ max., rated for 50mA at 12V DC, and withstands 100,000 cycles of operation. The switch features easy surface mounting, with guidance for PCB land and hole dimensions. It is ideal for electronic devices requiring reliable switching with minimal space, featuring both with and without ground terminal options for versatile integration.
ALPS ALPINE SKSCLAE010 Side Push Switch Specifications:
- Rating (max.): 50mA 12V DC
- Rating (min.): 10uA 1V DC
- Initial contact resistance: 1.00mΩ max.
- Travel: 2mm
- Operation life: 100,000 cycles
- Operating force: 1.6N or 2.2N
- Operating direction: Side push
- Guide bosses: Yes
- Ground terminal: Available (part numbers SKSCLBE010, SKSCPBE010)
- Dimensions: Length 3.55mm, Width 3.5mm, Height 1.25mm
- PCB mounting hole and land dimensions provided
- Operating temperature: -40°C to +85°C
- Rated insulation resistance: 100 MΩ min.
- Voltage proof: 250V AC for 2 seconds
- Durability: 100,000 cycles
- Reel size: 395x395x205 mm, tape width 12 mm, 5,000 pcs per reel
Buy the Alps Series SKSC: Low-profile Side Push Surface Mount Switch: SKSCLAE010
Purchase the Alps Series SKSCLAE010 side push switch online now and benefit from its compact design, durability for 100,000 cycles, and reliable contact performance. Its slim profile of 1.25mm makes it ideal for space-constrained applications, providing consistent operation with operation forces of 1.6N or 2.2N. Designed for surface mounting, it features PCB land and hole dimensions specified for easy integration. This switch is perfect for electronics requiring durability, precise actuation, and space savings, ensuring quality and easy online ordering.
Order your Alps Series SKSCLAE010 low-profile surface mount switch today and ensure reliable, space-efficient switching for your electronic projects.
Frequently Asked Questions
Where can I buy ALPS ALPINE SKSCLAE010?
You can click on the BUY or RFQ button to purchase SKSCLAE010 from an authorized ALPS ALPINE distributor.
How do I troubleshoot issues or seek technical support for part SKSCLAE010?
You can download the SKSCLAE010 datasheet or visit the ALPS ALPINE website for support.
Who is the manufacturer of SKSCLAE010?
ALPS ALPINE
