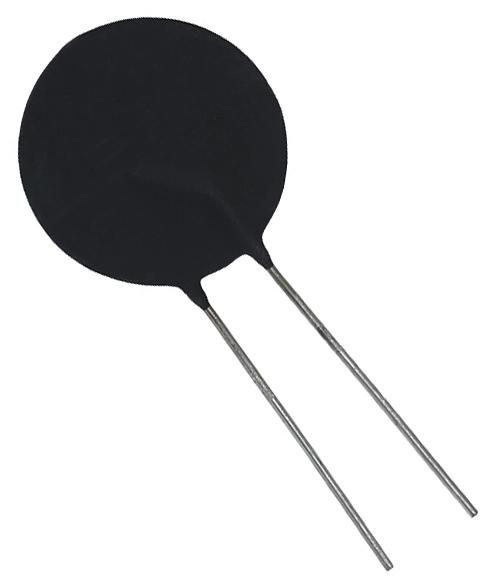

AMETHERM SL1215003 Thermistor for Circuit Protection
The thermistor is designed for circuit protection and temperature sensing applications, featuring a resistance of 15.0 Q at 25°C with a tolerance of ±20%. It can handle a maximum current of 3.0A up to 65°C and has an energy rating of 40.05 Joules, with an instantaneous failure point at 105.0 Joules. Its body temperature rating is 142°C, with a dissipation constant of 13.9 mW/°C and a thermal time constant of 54 seconds. The device is constructed with a lead diameter of 1.0 ±0.1 mm, with options for straight or kinked leads, and is suited for high-capacity applications, including 2700UF/690UF at 120/240VAC. Certified under CSA File #CA118061, it ensures safety and reliability in electrical systems.
AMETHERM SL1215003 Thermistor for Circuit Protection Specifications:
- Resistance @ 25°C: 15.0 Ohms ±20%
- Max Current: 3.0A up to 65°C
- Energy Rating: 40.05 Joules
- Failure Point: 105.0 Joules
- Resistance @ Max Current: 0.2208 Ohms
- Resistance @ 50% Max Current: 0.5382 Ohms
- Body Temperature Rating: 142°C
- Dissipation Constant: 13.9 mW/°C
- Thermal Time Constant: 54 seconds
- Lead Diameter: 1.0 ±0.1 mm
- Lead Lengths: 120-405 mm
- Max Capacitance @ 120VAC: 2700UF
- Max Capacitance @ 240VAC: 690UF
- CSA Certification: #CA118061
- Revision Date: March 19, 2003
Buy the Buy Ametherm Thermistors Part Number SL12 15003 Online
Purchase the Ametherm thermistor model SL12 15003 online today and benefit from a high-quality device designed for reliable circuit protection. Featuring a resistance of 15 ohms at 25°C, it supports a maximum current of 3A and offers an energy rating of 40.05 Joules, making it ideal for various electrical applications. Its body temperature can withstand up to 142°C, with options for straight or kinked leads for flexible installation. Certifed under CSA, this thermistor guarantees safety, durability, and efficient thermal management in your systems.
Buy Ametherm SL12 15003 thermistors now and ensure reliable circuit protection with high current capacity and robust thermal performance.
