AMP - TE CONNECTIVITY 23439861 High-Speed Interconnect Module
TE Connectivity offers advanced QSFP-DD connectors and cable assemblies designed for high-speed 400G interconnect solutions used in data centers, servers, switches, and high-performance computing. These modules feature multi-channel configurations with customizable heatsinks, thermally enhanced designs, and compatibility with existing QSFP modules. The connectors support versatile configurations, including dual, quad, and octal lane setups, with high-density SMT options and lightpipe configurations for optimal heat transfer and signal integrity. The cable assemblies enable efficient, high-bandwidth connections up to 56 Gbps PAM-4 over distances up to 2.5 meters, meeting IEEE standards for 400G data transmission.
AMP - TE CONNECTIVITY 23439861 High-Speed Interconnect Module Specifications:
- Connector type: Surface Mount (SMT), traditional SMT with 4 rows
- Cage options: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, belly-to-belly compatible
- Heatsink options: extruded aluminum, thermally enhanced ZIP fin, custom heights
- Lightpipe configurations: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6 with dual, quad options
- Cable configurations: QSFP-DD to QSFP-DD, 2x, 4x, 8x subassemblies
- Cable length: up to 2.5 meters, supporting 56 Gbps PAM-4 at 13.28 GHz
- Maximum bandwidth per port: 400G, capable of 28 Gbps NRZ or 56 Gbps PAM-4
- Connector part numbers: 2318579-1, 2318579-2 (belly-to-belly)
- Cable part numbers range from 2323765 to 2327689 for various lengths and configurations
- Compatibility: Supports IEEE 802.3cd SDD21 standards for high-speed data transfer
- Physical details: Dimensions vary based on heatsink and configuration, typical heatsink height up to 23mm
- Certification and Testing: Structural analysis, wear, and durability tests ensure reliable performance over multiple insertions

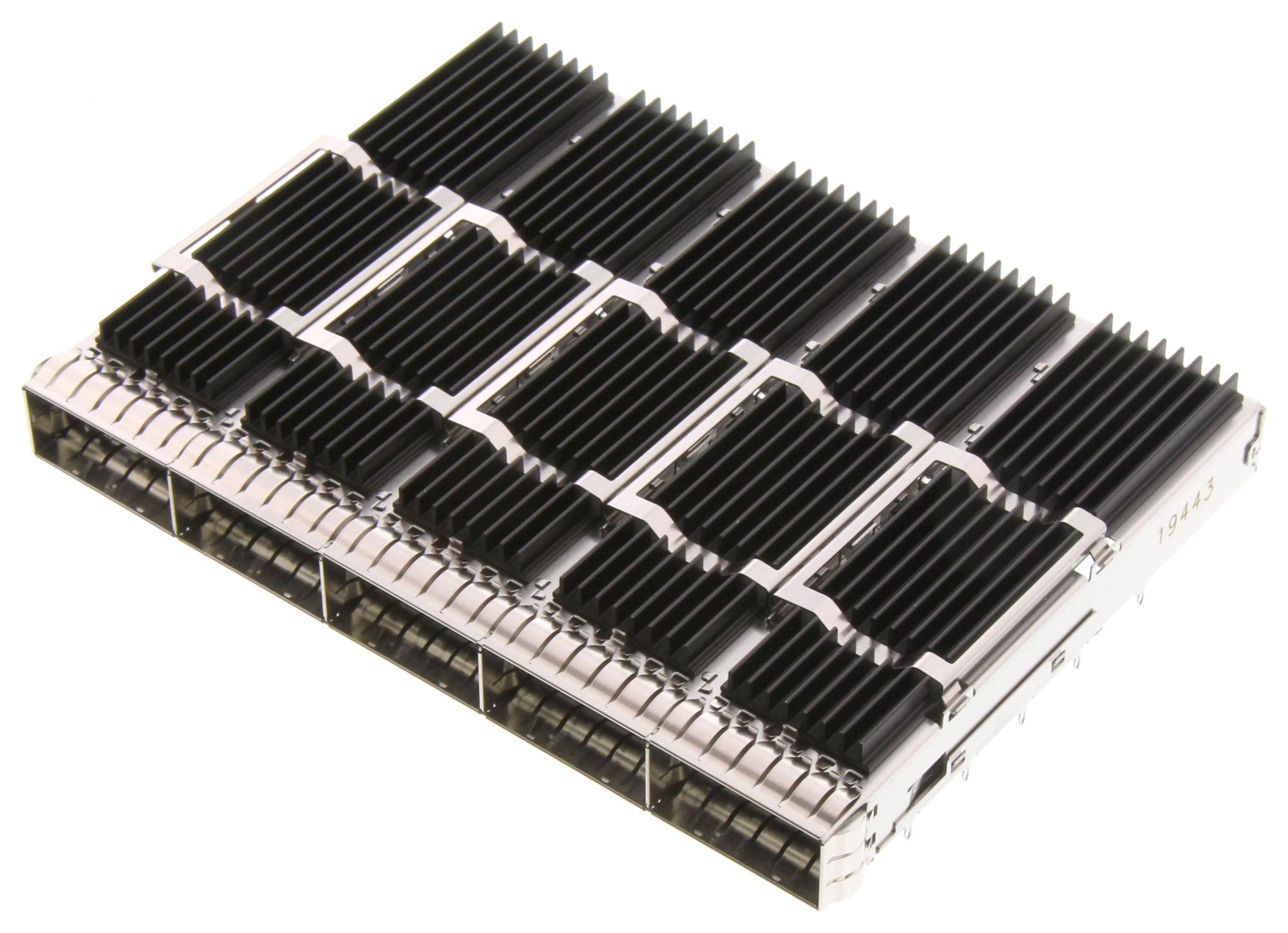

Buy the TE Connectivity 23439861 – Reliable High-Speed Interconnects for Industrial Applications
Purchase TE Connectivity's high-speed QSFP-DD connectors and cable assemblies online to ensure optimal performance and reliability in your networking infrastructure. Designed for data centers, servers, switches, and HPC applications, these modules support multi-lane configurations with customizable heatsinks for effective thermal management. Their high bandwidth capabilities up to 56 Gbps PAM-4 over distances up to 2.5 meters meet the latest IEEE standards, providing future-proof solutions for demanding enterprise and industrial networks. Secure your high-performance connectivity today for seamless data transfer and system stability.
Get TE Connectivity 23439861 today—built for high-speed data transfer, thermal performance, and long-lasting durability in demanding environments.
