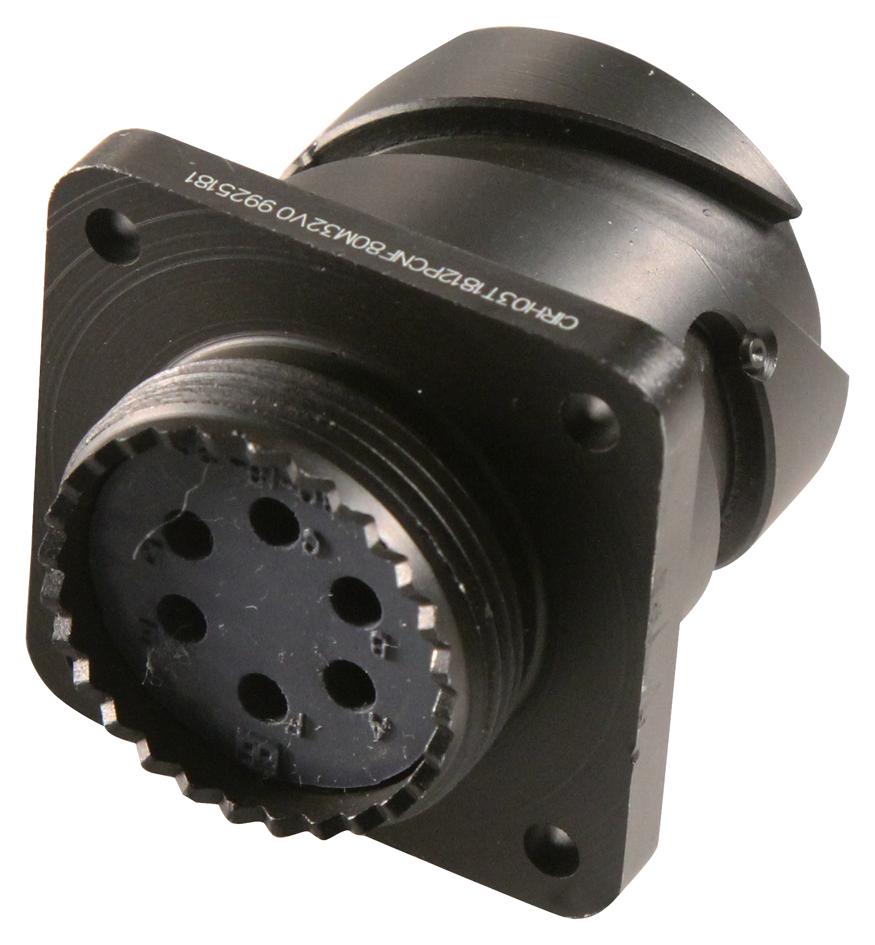

AMP - TE CONNECTIVITY CIRH03T1812PCNF80M32V0 Modular Bayonet Lock Connectors
The CIRH series features modular bayonet lock connectors designed for industrial applications, compliant with MIL-C-5015 standards. These connectors are halogen-free, environmentally safe, and provide reliable electrical connections with positive coupling audible ‘snap’ indicators. Constructed with stainless steel anti-wear pins for durability in vibration-prone environments, they include low fire hazard rubber insulators conforming to European EN 45545-2, French NF F 16-101, and British BS 6853 standards. Sealed with dynamic seal rings and individual wire seal grommets, they offer excellent EMI/RFI shielding, water, and dust ingress protection, suitable for mass transportation, entertainment, and industrial markets.
AMP - TE CONNECTIVITY CIRH03T1812PCNF80M32V0 Modular Bayonet Lock Connectors Specifications:
- Material: Aluminium alloy, stainless steel anti-wear pins, low fire hazard rubber insulators
- Electrical Ratings: Rated at Up to 150A, voltage up to 1750V, current de-rating depending on AWG size
- Temperature Range: -55°C to +200°C
- Environmental: Shock severity 759g, 30-hour test at 109g, vibration 5-500Hz, compliant with EN 45545-2 HL3, NF F 16-101, BS 6853
- Sealing & Shielding: Dynamic seal ring, wire seal grommet, EMI/RFI shielding, water & dust ingress protection
- Connections: Crimp or p.c. tail termination, number of contacts varies from 2 to 95, contact sizes from AWG 16/16S to AWG 2/0
- Coupling & Locking: 3-pin bayonet coupling with positive audible ‘snap’ and visual indicators
- Certifications: UL Listed, CSA Certified, European and British safety standards met
Buy the TE Connectivity CIRH – Reliable Industrial Connectors for Harsh Environments
Experience the reliable power of TE Connectivity’s modular bayonet lock connectors designed for industrial environments. These halogen-free, certified connectors ensure excellent EMI/RFI shielding, water and dust ingress protection, and long service life even in vibration-heavy settings. Ideal for mass transit, entertainment, and heavy machinery, they meet stringent safety standards including UL, CSA, EN 45545-2, NF F 16-101, and BS 6853. Easy to install with positive audible ‘snap’ coupling, these connectors promise durable, environmentally safe, and high-performance electrical connections for demanding applications.
Buy TE Connectivity CIRH series connectors now and experience unmatched durability, environmental safety, and reliable electrical performance in tough industrial conditions.
Frequently Asked Questions
Where can I buy AMP - TE CONNECTIVITY CIRH03T1812PCNF80M32V0?
You can click on the BUY or RFQ button to purchase CIRH03T1812PCNF80M32V0 from an authorized AMP - TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CIRH03T1812PCNF80M32V0?
You can download the CIRH03T1812PCNF80M32V0 datasheet or visit the AMP - TE CONNECTIVITY website for support.
Who is the manufacturer of CIRH03T1812PCNF80M32V0?
AMP - TE CONNECTIVITY
