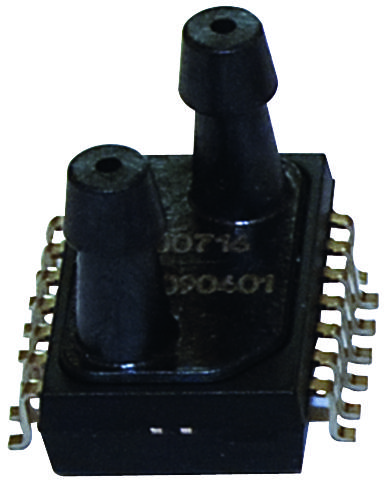

AMPHENOL ADVANCED SENSORS NPA500B02WG Low Pressure Sensor
The NPA series low pressure sensor by Amphenol Advanced Sensors offers a compact, surface-mount design with calibrated gauge and differential pressure measurement options. Available with amplified analog or digital I²C outputs, these sensors feature a full-scale range of 2” and 5” H2O, operate from -40°C to 125°C, and include on-chip temperature sensing. Designed for printed circuit board mounting, they deliver high accuracy with a total error band of ±1.5% span at 5”H2O and ±2.5% at 2”H2O. Suitable for dry gasses with media compatibility, they support precise pressure monitoring applications.
AMPHENOL ADVANCED SENSORS NPA500B02WG Low Pressure Sensor Specifications:
- Pressure Range: 2”H2O, 5”H2O
- Maximum Overpressure: 140 in H2O
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature Range: 0°C to +60°C
- Supply Voltage: 3.3V or 5V DC
- Output Options: Amplified Analog, Digital I2C
- Total Error Band: ±1.5% Span at 5”H2O, ±2.5% at 2”H2O
- Response Time: 0.5 ms typical
- Current Consumption: 1.2 mA typical
- Media Compatibility: Dry gases, plastic, silicon, epoxy, RTV, Pyrex, silicone gel
- Dimensions: SOIC14 package, approximate size 27mm x 7mm
- Weight: 0 grams
Buy the Buy Amphenol Low Pressure Sensor Part Number NPA500B02WG Online
Secure your Amphenol Low Pressure Sensor NPA500B02WG today through our online store. This compact surface-mount sensor offers calibrated gauge and differential pressure measurement with high accuracy, digital and analog outputs, suited for PCB integration. Designed to operate from -40°C to 125°C, it features a quick response time of 0.5 ms and low power consumption. Ideal for industrial and automation uses, it is compatible with dry gases and packaged in a standard SOIC14 form for easy handling and installation.
Get Amphenol NPA500B02WG today—designed for precision and durability in low pressure measurement applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NPA500B02WG?
You can click on the BUY or RFQ button to purchase NPA500B02WG from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NPA500B02WG?
You can download the NPA500B02WG datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NPA500B02WG?
AMPHENOL ADVANCED SENSORS
