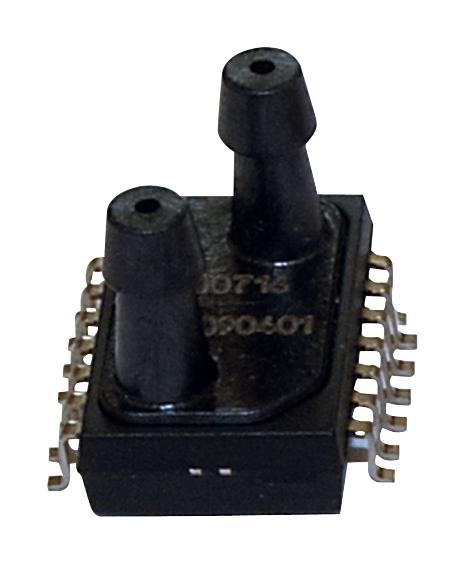

AMPHENOL ADVANCED SENSORS NPA700B030G Pressure Sensor
The NPA Series pressure sensor offers a compact, surface-mount design suitable for PCB integration. It provides calibrated performance with multiple outputs including amplified analog, digital serial, and uncalibrated mV options. The series supports differential, gauge, and absolute pressure measurements from 10 inches H2O up to 30 PSI, with high accuracy de-rated at total error bands less than 1.5%. Operating from -40 to 125°C, it is compatible with dry gases and exposed materials like plastics and silicones, making it ideal for industrial, automation, and electronics applications.
AMPHENOL ADVANCED SENSORS NPA700B030G Pressure Sensor Specifications:
- Physical Dimensions: SOIC14 surface mount package
- Weight: 4 grams
- Pressure Range: 10 inches H2O to 30 PSI
- Accuracy (Total Error Band): < ±1.5% FSO
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -40°C to +125°C
- Material Compatibility: Exposed plastics, silicon, epoxy, RTV, pyrex, silicone
- Media Compatibility: Dry gases, positive differential and gauge pressure
- Proof Pressure: Up to 60 psi
- Output Options: Amplified analog, digital serial (14-bit), I2C, uncalibrated mV
- Supply Voltage: 3.3V or 5V for amplified analog, 5V for digital outputs
- Resolution (ADC): 14-bit, 16383 steps
- Sampling Rate: 1 kHz (serial), 2 kHz (I2C)
- Temperature Sensor: On-chip digital temperature sensor
- Package lead material: Alloy 194, NiPdAu plated
Buy the Amphenol Series NPA Pressure Sensor: NPA700B030G
Order the Amphenol NPA700B030G pressure sensor online today for accurate pressure measurement in diverse industrial environments. Its compact SOIC14 packaging simplifies PCB mounting, ensuring easy integration into your electronic systems. The sensor offers calibrated measurement with amplified analog, digital serial, and uncalibrated mV outputs, supporting differential, gauge, and absolute pressure types. Operating efficiently from -40°C to 125°C, it delivers high accuracy with less than 1.5% total error band, making it ideal for demanding automation, industrial, and electronics applications.
Buy Amphenol NPA700B030G pressure sensor now and experience unmatched reliability and performance for precise industrial and automation control.
