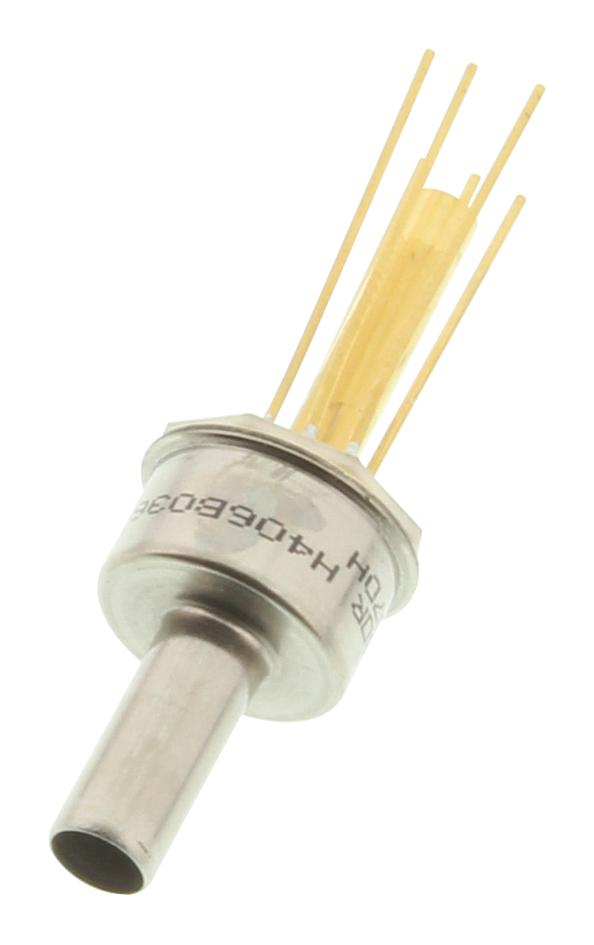

AMPHENOL ADVANCED SENSORS NPH8030DH Low Pressure Sensor
The NovaSensor NPH Series features solid state low-pressure sensors housed in a TO-8 package, employing micromachined silicon diaphragms and piezoresistive strain gauges for high reliability. Designed for applications including process control, HVAC, biomedical, and aerospace, these sensors offer precise measurement with a maximum overpressure of five times rated pressure, rapid response, and excellent stability. Compatibility with non-corrosive gases and dry air, combined with integrated temperature compensation, ensures accurate pressure readings from 0 to 10 inches H2O, 0 to 1 psi, or 0 to 5 psi, making them ideal for critical control systems and instrumentation.
AMPHENOL ADVANCED SENSORS NPH8030DH Low Pressure Sensor Specifications:
- Pressure Range: 0 to 10 in H2O (0 to 25 mbar), 0 to 1 psi (0 to 0.06 bar), 0 to 5 psi (0 to 0.34 bar)
- Maximum Pressure: 5x rated pressure
- Input Excitation: 15 mA, 2 mA maximum
- Output: 100 mV linearly proportional to input pressure, with typical full-scale outputs of 50-150 mV depending on range
- Nonlinearity: 0.05% FSO typical
- Hysteresis & Repeatability: 0.2% FSO
- Temperature Range (Operating): -40°F to 257°F (-40°C to 125°C)
- Compensated Temperature Range: 32°F to 158°F (0°C to 70°C)
- Media Compatibility: Non-corrosive gases and dry air
- Vibration: 10 g RMS, 20-2000Hz
- Shock: 100 g for 11 ms
- Weight: Less than 0.2 oz (5.6 g)
- Pressure Port: Standard 3/16 inch OD
- Wetted Materials: Nickel, gold-plated Kovar, silicon, glass, RTV, and silicone gel
Buy the Buy NovaSensor NPH Series Pressure Sensor Part Number NPH8030DH Online
Order the NovaSensor NPH Series low-pressure sensors online today to ensure precise, stable pressure measurements for process control, biomedical, HVAC, and aerospace needs. Featuring integrated silicon diaphragm technology, they deliver high accuracy with a maximum overpressure of five times rated pressure. Their compatibility with non-corrosive gases and dry air, combined with excellent temperature compensation and compact size, make them ideal for critical applications requiring reliable pressure data. Purchase now to enhance your instrumentation performance and system reliability seamlessly.
Buy NovaSensor NPH Series pressure sensors now and experience unmatched reliability, stability, and accurate low-pressure measurements for industrial and medical applications.
