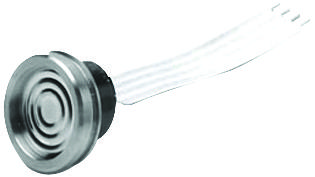

AMPHENOL ADVANCED SENSORS NPI19H101GH Low Pressure Sensor
The NPI-19 Series Low Pressure Sensors are highly reliable, solid-state devices designed for harsh environments. Featuring 316L stainless steel construction, these sensors offer precise measurements with static accuracy of 40.5%. They operate from 32°F to 158°F (0°C to 70°C) and provide typical output signals of 125 mV or 75 +1 mV depending on the version. Ideal for process control, hydraulic systems, biomedical instruments, HVAC, and marine applications, these sensors utilize SenStable® processing technology for excellent stability and include various port configurations. Their modular design enables customization for diverse pressure ranges and media compatibility, ensuring durability and precise performance in demanding settings.
AMPHENOL ADVANCED SENSORS NPI19H101GH Low Pressure Sensor Specifications:
- Pressure Ranges: 0 to 2.5 psig (0 to 172 mbar) and 0 to 5 psig (0 to 345 mbar)
- Maximum Overpressure: 3x pressure rated
- Operating Temperature: 32°F to 158°F (0°C to 70°C)
- Storage Temperature: -40°F to 257°F (-40°C to 125°C)
- Material: 316L stainless steel, ceramic substrate
- Dimensions: Cylinder with diameter approximately 0.74 in (19 mm) and length 0.28 in (7.1 mm)
- Electrical: Constant current of 1.5 mA or constant voltage of 10 V, with high insulation resistance
- Output: 125 mV typical FSO on current version, 75 +1 mV on voltage version
- Environmental: Suitable for media in contact with stainless steel, compatible with corrosive media
- Port configurations: O-ring seal, weld port type, customizable options
- Certifications: Appropriate for process control, medical, HVAC, marine, and aerospace applications
Buy the GE Series NPI-19 Pressure Sensor: NPI19H101GH
Purchase the GE Series NPI19H101GH low pressure sensor online now to benefit from its high reliability, stainless steel construction, and precise performance. This sensor is ideal for industrial machinery, process control, medical instruments, HVAC, and marine systems, providing accurate readings in harsh conditions. Featuring customizable pressure ranges and robust design, it guarantees excellent stability and durability. Shop online today and give your projects the dependable measurement solutions they need to operate efficiently and safely in demanding environments.
Order your GE Series NPI19H101GH low pressure sensor today and ensure your systems operate with precise, reliable measurement in tough environments.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NPI19H101GH?
You can click on the BUY or RFQ button to purchase NPI19H101GH from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NPI19H101GH?
You can download the NPI19H101GH datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NPI19H101GH?
AMPHENOL ADVANCED SENSORS
